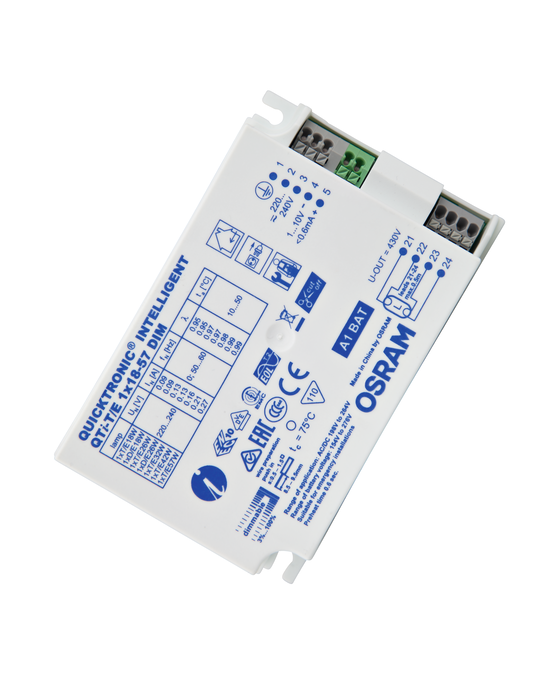

Name: 1X18…57 DIM - led-sklad.ru
SKU: 4008321060860
Availability: InStock

Product benefits

Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics
Control via the 1…10 V interface

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

Control via 1…10 V interface
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
Dimming range: 3…100 % luminous flux
Lamp start: within 0.6 s
Lifetime: > 100,000 h (for T = 65 °C at T_c)
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Energy Efficiency Index EEI: A1 BAT
Overtemperature protection: Thermal management at high t_c temperatures
Safety: to EN 61347-2-3
Lamp operation: to EN 60929
RI suppression: to EN 55015:2006+A1:2007+A2:2009/CISPR 15
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547

GTIN	4008321060860
Nominal wattage	61.00 W
Nominal voltage	220…240 V
Height	33.00 mm
Product weight	233.5 g
Body material	Metal
Ambient temperature range	+10…+50 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	Yes
Standards	Acc. to EN 550
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	1
Mains frequency	50/60 Hz
Inrush current	30 A
Length	123.00 mm
Width	79.00 mm
Product remark	Optional cable clamp, see chapter ECG mountings — cable clamp
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A1
Type of current	AC/DC
Maximum temperature at tc test point	75 °C 1)
Operating frequency	42…140 kHz
Input voltage DC	154…276 V
ECG lifetime	100000 h 1)
Dimming range	3…100 %
Dimming interface	1…10 V
Permitted rel. humidity during operation	5…85 % 2)
Approval marks – approval	V
Wire preparation length, input side	8.5…9.5 mm 1)
Mounting hole spacing, length	111,0 mm
Wire preparation length, output side	8.5…9.5 mm 1)
Max. cable length to lamp/LED module	0,5 m
Casing material	Metal
Max.housing temperature in case of fault	110 °C
Suitable for fixtures with prot. class	I
Max. ECG no. on circuit breaker 10 A (B)	12 1)
Max. ECG no. on circuit breaker 16 A (B)	19 1)
Starting time [PIM]	0.6 s
End of lamp life safety shutdown	EOL T.2
EEI – Energy Label	A1 BAT
