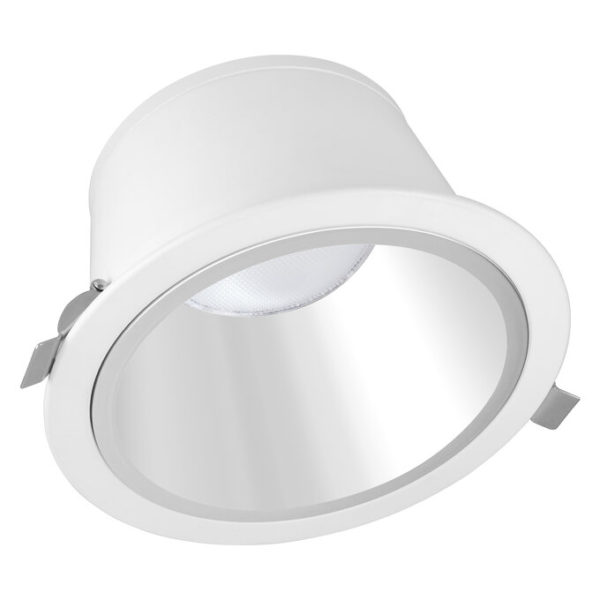

BIOLUX HCL DL DN150 S 20W TW ZB

BIOLUX HCL DL DN150 S 20W TW ZB

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075724600 Категория:
Product benefits
  • Luminaire suitable for VIVARES ZIGBEE, BIOLUX HCL and other Zigbee 3.0 light controls
  • Individual Tunable White or HCL light through connection to compatible Zigbee 3.0 controls
  • Light quality of CRI 90 supports increased well-being in HCL applications
  • 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
  • Compatible with VIVARES CLOUD SERVICE for energy monitoring
  • External Zigbee driver for extended flexibility and easy installation
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • Offices, conference rooms
  • Nursery and elderly homes
  • Reception areas, foyers and corridors
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Housing material: Aluminum mirror-finished reflector
  • Connector box with push wire terminal for tool-free connection
  • Through-wiring possible
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Very high color rendering index Ra: > 90
Equipment / Accessories
  • Connector box with 5-pole terminal included
  • External control gear included
  • LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
  • LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
  • The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- — VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
  • Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
  • For Guarantee see
GTIN

4058075724600
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

95.000 mA
Luminous flux

2100 lm
Luminous efficacy

105 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

≥90
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

60 °
Height

99.00 mm
Product weight

570.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

175.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.84 A
Inrush current time Th50

91 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

145
Max. number of luminaires per miniature circuit breaker C10

92
Max. number of luminaires per miniature circuit breaker C16

147
Protection class IK (shock resistance)

IK03
Type of dimming

ZIGBEE
Application environment

Indoor
Luminous intensity

—
Added function

VIVAR
Lifespan L80/B10 at 25 °C

40000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Mounting diameter

160 mm
Mounting depth

125 mm
UGR

≤ 19
Output current

550 mA
ECG - Length

160 mm
ECG - Width

70 mm
ECG - Height

33 mm
Lifespan L90/B10 at 25 °C

25000 h
Dimming range

1…100 %
Low flicker

Yes
ECG - Output ripple current

< 20 %
