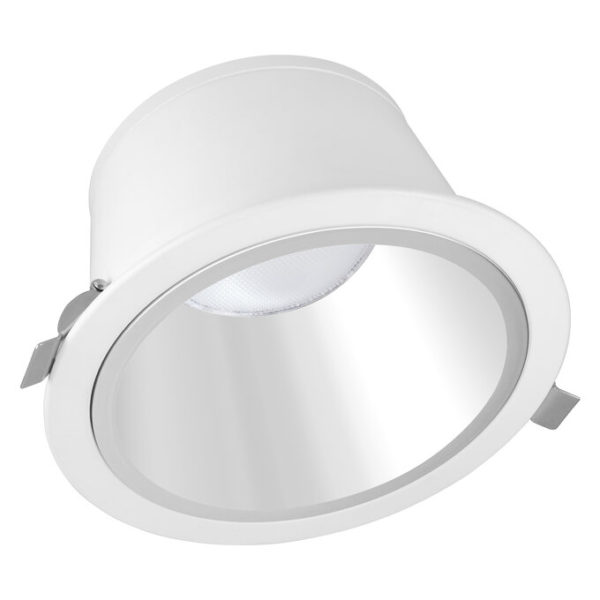

BIOLUX HCL DL DN150 ZB 20W 2700-6500K

BIOLUX HCL DL DN150 ZB 20W 2700-6500K

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075400733 Категория:
Product benefits
  • Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls
  • Biologically optimized lighting by adapting artificial light to natural daylight course
  • 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
  • Can support working with more concentration
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Lighting solution for up to 40 BIOLUX HCL luminaires — BIOLUX HCL LED strips combined mit BIOLUX HCL control unit
  • Open-plan office solution for up to 200 BIOLUX HCL luminaires combined with VIVARES ZIGBEE control unit
  • Hotel and office rooms with little daylight
Product features
  • Zigbee 3.0 certified Tunable White luminaires — LED strips for simple integration into partner systems
  • Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Wireless communication between control unit and luminaries via Zigbee protocol
  • Very high color rendering index Ra: > 90
Equipment / Accessories
  • LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
  • LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
  • The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- — VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
  • Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
  • For Guarantee see
GTIN

4058075400733
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

93 mA
Luminous flux

1800 lm
Luminous efficacy

90 lm/W
Color temperature

2700…6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Beam angle

60 °
Height

98.90 mm
Product weight

550.00 g
Product color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Diameter

175.40 mm
Mounting location

Ceiling
Protection class

II
Cover material

Polycarbonate (PC)
Mains frequency

50…60 Hz
Inrush current

20 A
Power factor λ

≥0.90
Total harmonic distortion

< 20 %
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Starting time

< 0.5 s
Type of current

AC
Luminous intensity

—
Input voltage range

220…240 V
Temperature range in operation

-20…+40 °C
Dimming interface

Zigbee 3.0
Suitable for emergency lighting

No
Low flicker

Yes
