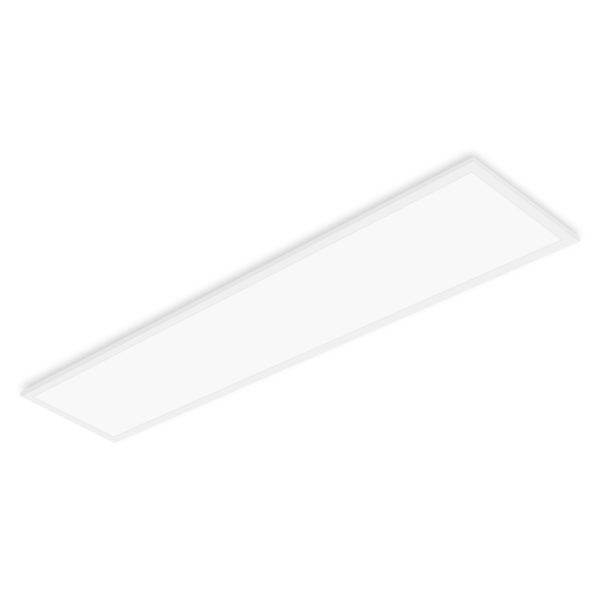

BIOLUX HCL PL 1200 S 37W TW ZB

BIOLUX HCL PL 1200 S 37W TW ZB

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075724587 Категория:
Product benefits
  • Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
  • Compatible with VIVARES cloud services
  • Through-wiring possible with included connector box
  • Good glare reduction (UGR ≤ 19)
  • Low flicker light thanks to special electronic control gear
  • 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
Areas of application
  • Available for grid sizes of 600 x 600 mm, 625 x 625 mm and 1200 x 300 mm
  • BIOLUX HCL system: Lighting solution for single office areas with up to 48 BIOLUX HCL products
  • VIVARES Zigbee system: Open-plan office solution for up to 200 BIOLUX HCL products
  • Hotel and office rooms with little daylight
  • Nursery and elderly homes
Product features
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Very high color rendering index Ra: > 90
  • Initial color consistency: 3 SDCM
  • High luminous efficacy: up to 110 lm/W
Equipment / Accessories
  • Connector box with 5-pole terminal included
  • External control gear included
  • LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
  • LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
  • Accessories for several mounting options available
Legal advice
  • The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- — VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
  • Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
  • For Guarantee see
GTIN

4058075724587
Nominal wattage

37.00 W
Nominal voltage

220…240 V
Nominal current

190.000 mA
Luminous flux

4100 lm
Luminous efficacy

110 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

≥90
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

11.00 mm
Product weight

3220.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP20/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

8.8 A
Inrush current time Th50

88 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

74
Max. number of luminaires per miniature circuit breaker C10

46
Max. number of luminaires per miniature circuit breaker C16

74
Protection class IK (shock resistance)

IK02
Length

1195.00 mm
Width

295.00 mm
Mounting width

290,0 mm
Mounting length

1190 mm
Type of dimming

ZIGBEE
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVAR
Lifespan L80/B10 at 25 °C

40000 h 1)
Adjustable

No
Light emitting surface material

PMMA
Mounting depth

50,0 mm
UGR

< 19
Output current

1100 mA
ECG - Length

160 mm
ECG - Width

70,0 mm
ECG - Height

35 mm
Lifespan L90/B10 at 25 °C

25000 h
Dimming range

0…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 20 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
