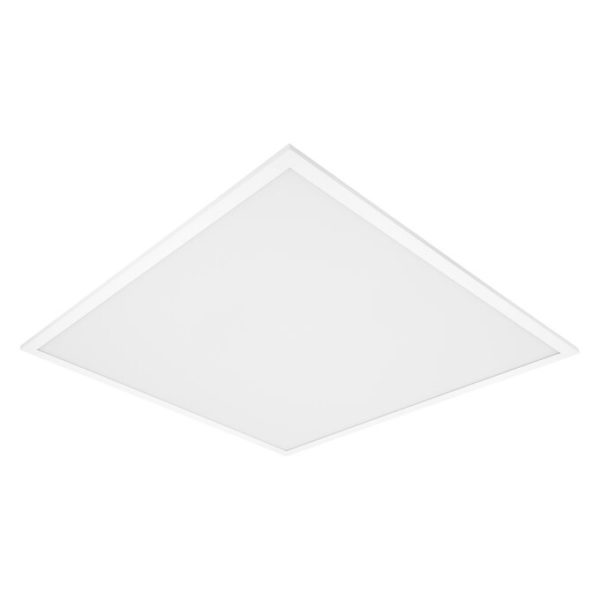

BIOLUX HCL PL 600 S 40W TW DALI

BIOLUX HCL PL 600 S 40W TW DALI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854140068 Категория:
Product benefits
  • Suitable luminaire for VIVARES DALI, VIVARES DALI HCL and other DALI-2 light controls
  • Enables an individual Tunable White lighting solution in combination with compatible DALI-2 lighting controls
  • Light quality of CRI 90 supports increased well-being in HCL applications
  • 7 year system guarantee when operated in a VIVARES DALI system
  • Compatible with VIVARES CLOUD SERVICE for energy monitoring
  • Through-wiring possible with included cable clamp
  • External DALI-2 driver for extended flexibility and easy installation
  • Good glare reduction (UGR < 19)
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers and corridors
  • Available for grid size of 600 mm x 600 mm, 625 mm x 625 mm and 1200 x 300 mm
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Very high color rendering index Ra: > 90
  • High quality extruded aluminum frame
  • Version available with pre-mounted Wago-connector (Item No: WAGO 771-9985/206-301) for Panel 625 CSW
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Security kit (security wire and brackets) included
  • Cable clamp for through wiring preinstalled
References / Links
  • For Guarantee see
GTIN

4099854140068
Nominal wattage

40.00 W
Nominal voltage

220…240 V
Nominal current

190.000 mA
Luminous flux

4600 lm
Luminous efficacy

115 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

> 90
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

11.00 mm
Product weight

3300.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP20/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

27 A
Inrush current time Th50

205 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

23
Max. number of luminaires per miniature circuit breaker C10

23
Max. number of luminaires per miniature circuit breaker C16

36
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVAR
Lifespan L80/B10 at 25 °C

40000 h 1)
Adjustable

No
Light emitting surface material

PMMA
Mounting depth

50,0 mm
UGR

< 19
Output current

1100 mA
ECG - Length

215 mm
ECG - Width

92 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

25000 h
Dimming range

1…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 1 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
