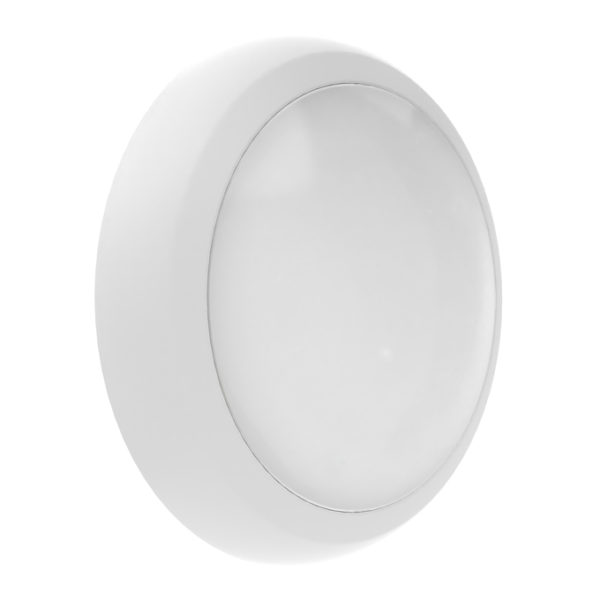

BLKH CBO RD 325 V 16W ML 8304057 WT

BLKH CBO RD 325 V 16W ML 8304057 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854480997 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High luminous efficacy: up to 125 lm/W
  • Type of protection: IP65
  • Impact resistance: IK10
  • Luminous flux: up to 1920 lm
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through-wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • Attachable half visor ring available separately
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854480997
Nominal wattage

16.0 W / 13 W / 9 W
Nominal voltage

220…240 V
Nominal current

90mA / 75mA / 55 mA
Luminous flux

1920 lm / 1612 lm / 1125 lm
Luminous efficacy

120 lm/W / 124 lm/W / 125 lm/W
Color temperature

3000 K / 4000 K / 5700 K
Light color (designation)

Warm Whi
Color rendering index Ra

≥80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

90.00 mm
Product weight

710.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

325.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Acrylonitrile butadiene styrene (ABS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

2 A
Inrush current time Th50

400 µs
Power factor λ

> 0.70
Total harmonic distortion

42.2 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

40
Max. number of luminaires per miniature circuit breaker C10

24
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK10
Application environment

Outdoor
Luminous intensity

700 cd
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

50000 h 1)
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

150 lm
Output current

170mA/140mA/95 mA
Lifespan L90/B10 at 25 °C

20000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

1.5 W
ECG - Output ripple current

5 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
EPD

LEDV-00051-V01.01-EN
9 W

120 lm/W
13 W

116 lm/W
16 W

110 lm/W
