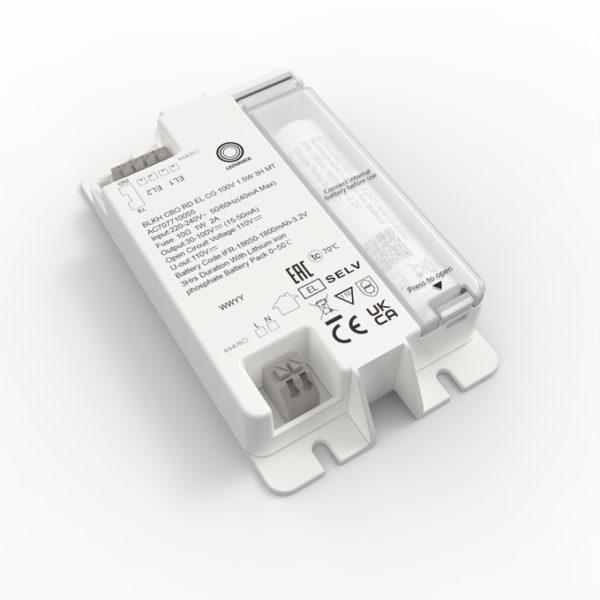

BLKH CBO RD EL CG 100V 1.5W 3h MT

BLKH CBO RD EL CG 100V 1.5W 3h MT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854481055 Категория:
Product benefits
  • Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
  • Easy maintenance due to manual self test function for emergency lighting
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h discharge time
  • Easy battery replacement possible
  • Modularly upgradeable Emergency kit reduces stock keeping complexity
Areas of application
  • Suitable for BULKHEAD COMBO ROUND
  • Buildings requiring up to 3 h emergency light operation
Product features
  • Operation mode: maintained (M) or non-maintained (NM)
  • Battery technology: LiFePO4
Equipment / Accessories
  • Battery included
  • Control LED with a retainer for recessed installation included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
  • Do not open enclosure-housing.
References / Links
  • For Guarantee see
GTIN

4099854481055
Nominal wattage

1.50 W
Nominal voltage

220…240 V
Nominal current

20 mA
Height

23.00 mm
Product weight

145.00 g
Product color

White
Body material

Polycarbonate (PC)
Ambient temperature range

0…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP20
Dimmable

No
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Protection class

II
Mercury content

0.0 mg
Type of emergency operation test

Test button
Mains frequency

50…60 Hz
Inrush current

4.2 A
Power factor λ

> 0.3
Protection class IK (shock resistance)

IK06
Length

116.00 mm
Width

68.00 mm
Battery size [GMS]

Others
Type of Battery

LiFePO4
Added function

PLUG & UPGRADE
Battery life in emergency operation mode

3 h
ECG lifetime

40000 h
Surge capability (L/N-Ground)

1000 V
RAL Color (most similar)

RAL 9003
Wattage in maintained operation mode

1.5 W
