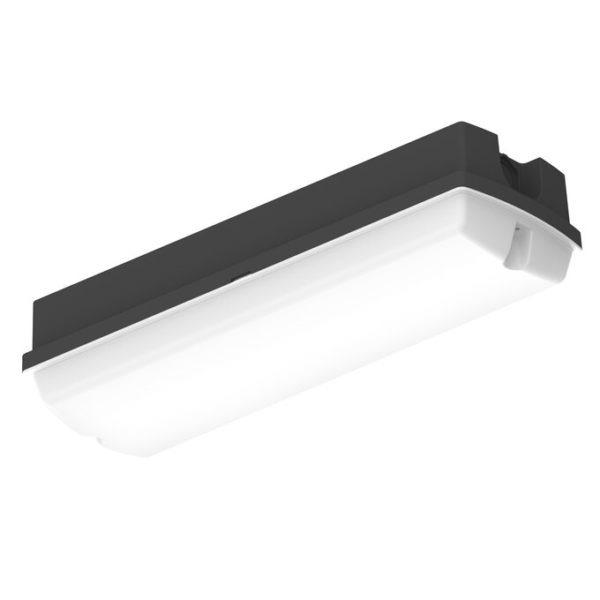

BLKH COMP RC EL SN V 11WML 83040 BK

BLKH COMP RC EL SN V 11WML 83040 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854290701 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Convenient visualization of results of automatic test with an included control LED
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Ambient temperature in operation: +5…+45 °C
  • Type of protection: IP65
  • Impact resistance: IK10
Equipment / Accessories
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854290701
Nominal wattage

11 W / 9 W / 7 W 1)
Nominal voltage

220…240 V
Nominal current

81…73…66 mA
Luminous flux

840 lm / 690 lm / 500 lm 1)
Luminous efficacy

76 lm/W / 71 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

125 °
Height

80.00 mm
Product weight

800.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

+5…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

4 A
Inrush current time Th50

180 µs
Power factor λ

> 0.5
Total harmonic distortion

< 64 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

104
Max. number of luminaires per miniature circuit breaker C10

87
Max. number of luminaires per miniature circuit breaker C16

140
Protection class IK (shock resistance)

IK10
Length

356.00 mm
Width

115.00 mm
Application environment

Outdoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

4500 mAh
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

40000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

150 °
Detection range of motion sensor

2…8 m
Battery charging time

24 h
Detection threshold of daylight sensor

2…50 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

5 s…30 min
Luminous flux in emergency operation mode

300 lm
Battery life in emergency operation mode

3 h
Output current

220…165…115 mA
Lifespan L90/B10 at 25 °C

20000 h
Sensor IP rating

IP20
Type of emergency light operation

Non-maintain
Luminous flux in maintained operation mode

840 lm
Integrated test switch

No
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

3 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

11 W
11 W

72 lm/W
9 W

73 lm/W
7 W

71 lm/W
