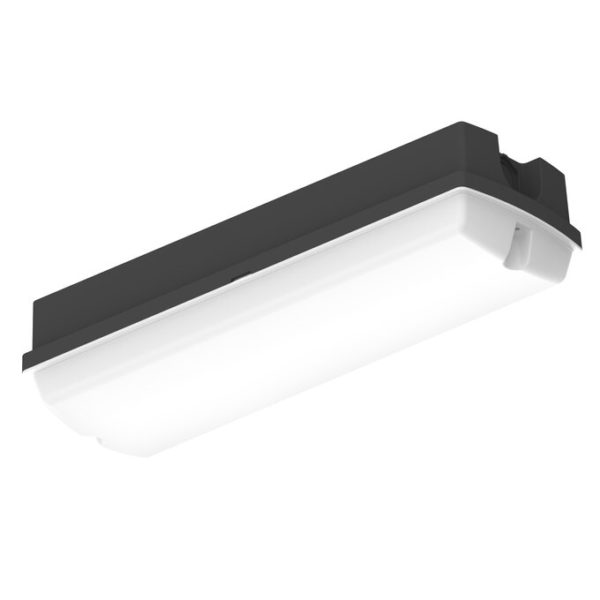

BLKH COMP RC SN V 9W ML 83040 BK

BLKH COMP RC SN V 9W ML 83040 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854290527 Категория:
Product benefits
  • Versatile due to selectable CCT in 3000K and 4000K
  • Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Multiple mounting patterns for convenient installation
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • Housing and cover made of UV-resistant PC
  • Type of protection: IP65
  • Impact resistance: IK10
  • Luminous flux: up to 840 lm
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+45 °C
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
  • Anti-theft screw included
References / Links
  • For Guarantee see
GTIN

4099854290527
Nominal wattage

9 W / 7 W / 5 W 1)
Nominal voltage

220…240 V
Nominal current

63…56…49 mA
Luminous flux

840 lm / 690 lm / 500 lm 1)
Luminous efficacy

93 lm/W / 98 lm/W / 100 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

125 °
Height

80.00 mm
Product weight

580.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

4 A
Inrush current time Th50

180 µs
Power factor λ

> 0.5
Total harmonic distortion

< 64 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

104
Max. number of luminaires per miniature circuit breaker C10

87
Max. number of luminaires per miniature circuit breaker C16

140
Protection class IK (shock resistance)

IK10
Length

356.00 mm
Width

115.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

40000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

150 °
Detection range of motion sensor

2…8 m
Detection threshold of daylight sensor

2…50 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

5 s…30 min
Output current

220…165…115 mA
Lifespan L90/B10 at 25 °C

20000 h
Sensor IP rating

IP20
Low flicker

Yes
RAL Color (most similar)

RAL 9005
ECG - Output ripple current

< 5 %
EPD

LEDV-00052-V01.01-EN
