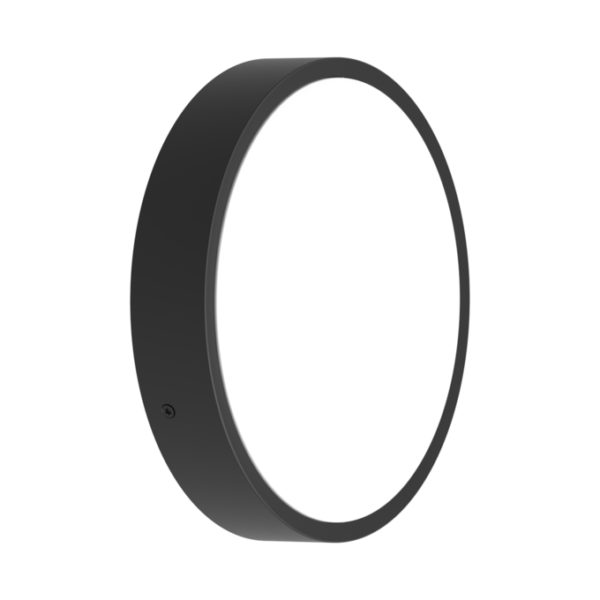

BLKH RD DA 300 P 15.5W 840 BK

BLKH RD DA 300 P 15.5W 840 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854290749 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Push-DIM application for easy control
  • High-quality dimming of 1…100 %
  • Flexible mounting patterns for convenient installation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854290749
Nominal wattage

15.50 W
Nominal voltage

220…240 V
Nominal current

69 mA
Luminous flux

2080 lm
Luminous efficacy

134 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

73.00 mm
Product weight

978.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

99000 h 1)
Number of switching cycles

60000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

312.00 mm
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

5.13 A
Inrush current time Th50

26 µs
Power factor λ

> 0.90
Total harmonic distortion

< 25 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

146
Max. number of luminaires per miniature circuit breaker C10

115
Max. number of luminaires per miniature circuit breaker C16

185
Protection class IK (shock resistance)

IK10
Type of dimming

DALI-2
Application environment

Outdoor
Added function

EVERLO
Lifespan L80/B10 at 25 °C

72000 h 1)
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

300 lm
Output current

350 mA
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

2.2 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of DALI data type PART 251, 252, 253 1)
