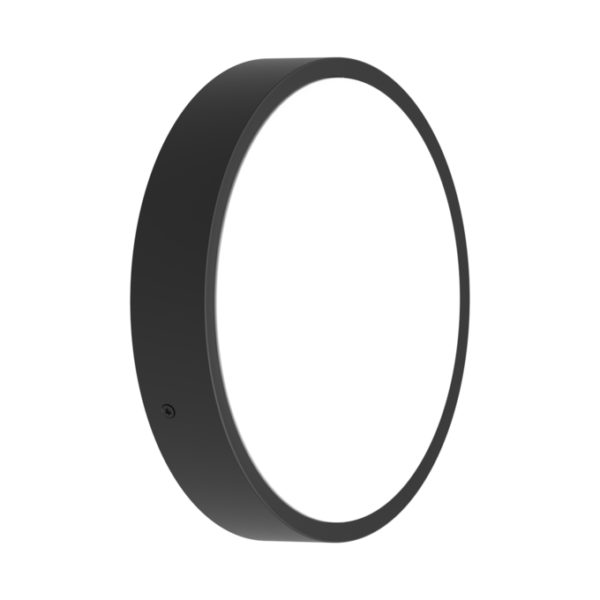

BLKH RD EL SN 300 P 20.5W ML 83040 BK

BLKH RD EL SN 300 P 20.5W ML 83040 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854286520 Категория:
Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Convenient visualization of results of automatic test with an included control LED
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Flexible mounting patterns for convenient installation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • Certified according to European norms (EN 60598-2-22)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Ambient temperature in operation: 0…+35 °C
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Type of protection: IP65
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854286520
Nominal wattage

20.5 W / 18 W / 15.5 W / 13.50 W 1)
Nominal voltage

220…240 V
Nominal current

94mA / 85mA / 76mA / 67 mA
Luminous flux

2300 lm / 2000 lm / 1700 lm / 1400 lm 1)
Luminous efficacy

113 lm/W / 111 lm/W / 109 lm/W / 104 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

73.00 mm
Product weight

1190.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

0…+35 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

74 000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

312.00 mm
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

9.5 A
Inrush current time Th50

26.8 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

79
Max. number of luminaires per miniature circuit breaker C10

63
Max. number of luminaires per miniature circuit breaker C16

101
Protection class IK (shock resistance)

IK10
Application environment

Outdoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

4500 mAh
Added function

EVERLO
Lifespan L80/B10 at 25 °C

56000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

150 °
Detection range of motion sensor

3…8 m
Battery charging time

24 h
Detection threshold of daylight sensor

2…50 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

5 s…30 min
Luminous flux in emergency operation mode

380 lm
Battery life in emergency operation mode

3 h
Output current

370…320…270…220 mA
Lifespan L90/B10 at 25 °C

46000 h
Type of emergency light operation

Non-maintain
Luminous flux in maintained operation mode

2300 lm
Integrated test switch

No
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

2.3 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

20.5 W
18 W

106 lm/W
20.5 W

107 lm/W
15.5 W

104 lm/W
13.5 W

98 lm/W
