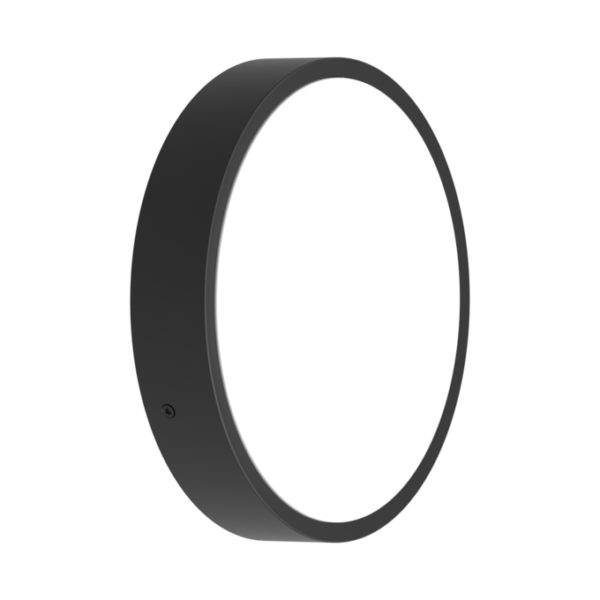

BLKH RD ZB 300 P 17W 840 BK

BLKH RD ZB 300 P 17W 840 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854800535 Категория:
Product benefits
  • Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
  • Zigbee 3.0 and Zigbee Direct via Bluetooth Low Energy (BLE)
  • Flexible NFC current settings on device in 1 mA steps
  • Consumption and diagnostic data via Zigbee
  • Low flickering enables high light quality as well as good visual comfort
  • High-quality dimming of 1…100 %
  • Flexible mounting patterns for convenient installation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with indcandescent or fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Suitable for emergency lighting fixtures acc. to EN 60598-2-2 with via NFC adjustable emergency output factor (EOFI)
  • Quick and easy current setting via NFC
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854800535
Nominal wattage

17.00 W
Nominal voltage

220…240 V
Nominal current

69.000 mA
Luminous flux

2080 lm
Luminous efficacy

134 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

73.00 mm
Product weight

997.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

60000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

312.00 mm
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

14 A
Inrush current time Th50

40.4 µs
Power factor λ

> 0.90
Total harmonic distortion

< 25 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

53
Max. number of luminaires per miniature circuit breaker C10

42
Max. number of luminaires per miniature circuit breaker C16

68
Protection class IK (shock resistance)

IK10
Photobiological safety group acc. to EN62471

RG0
Type of dimming

ZIGBEE
Application environment

Outdoor
Product remark

Available from March 2026
Added function

EVERLO
Lifespan L80/B10 at 25 °C

92000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

320 lm
Output current

370 mA
Lifespan L90/B10 at 25 °C

46000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

2.5 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
Recommended control gear

DR ZIGBEE NF P 30W 220-240V 0A7
