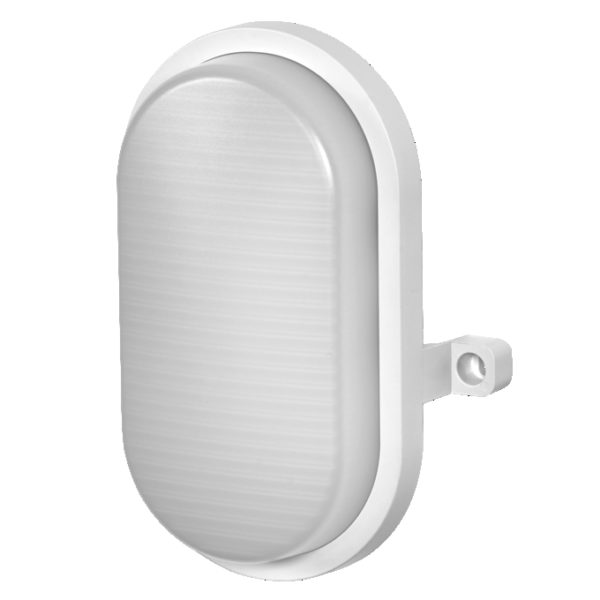

Bulkhead 4W/7W/9W CCT White

Bulkhead 4W/7W/9W CCT White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075845527 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) thanks to a switch on the backside
  • Suitable for use in dusty and damp locations thanks to high IP rating
Areas of application
  • Outdoor
  • Basement
  • Garages
  • Corridors, stairways, entrance areas
Product features
  • High luminous efficacy: > 115 lm/W for 6500 K
  • Impact resistance: IK06
  • Type of protection: IP65
  • Easy and quick installation
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4058075845527
Nominal wattage

9 W / 7 W / 4 W
Nominal voltage

220…240 V
Nominal current

48/37/22 mA
Luminous flux

840 lm / 720 lm / 500 lm
Luminous efficacy

105 lm/W / 100 lm/W / 94 lm/W
Color temperature

3000 K / 4000 K / 6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

176.00 mm
Product weight

220.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Wall
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Inrush current

0.1 A
Inrush current time Th50

150 µs
Power factor λ

> 0.70
Total harmonic distortion

< 54 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

119
Max. number of luminaires per miniature circuit breaker C10

80
Max. number of luminaires per miniature circuit breaker C16

128
Protection class IK (shock resistance)

IK08
Length

129.00 mm
Width

70.00 mm
4 W

120 lm/W
9 W

93 lm/W
7 W

102 lm/W
