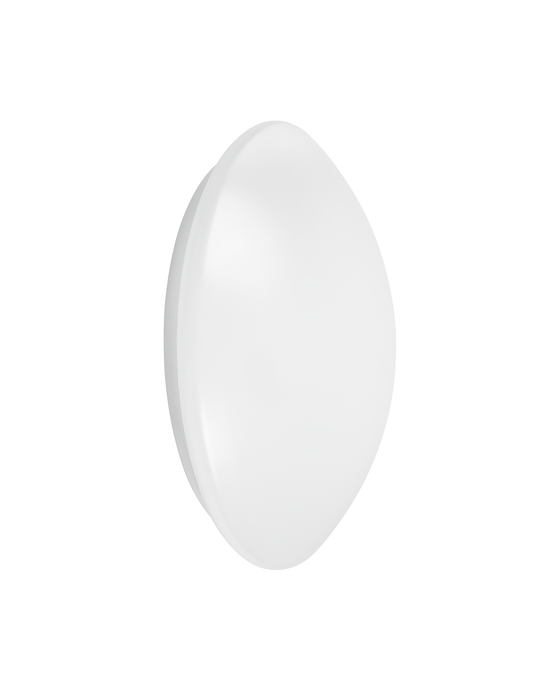

Ceiling Essential 380mm 24W 865

Ceiling Essential 380mm 24W 865

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854445453 Категория:
Product benefits
  • Simple installation thanks to light-weight design
  • Decorative wall light
Areas of application
  • Living areas
Product features
  • Wall and ceiling luminaire
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854445453
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

115.000 mA
Luminous flux

1920 lm
Luminous efficacy

80 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

120.00 mm
Product weight

660.00 g
Product color

White
Housing color

White
Body material

Plastic
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

20000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Diameter

400.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

8.6 µs
Power factor λ

> 0.70
Total harmonic distortion

70 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

3100 lm
Max. number of luminaires per miniature circuit breaker B16

69
Max. number of luminaires per miniature circuit breaker C16

83
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
