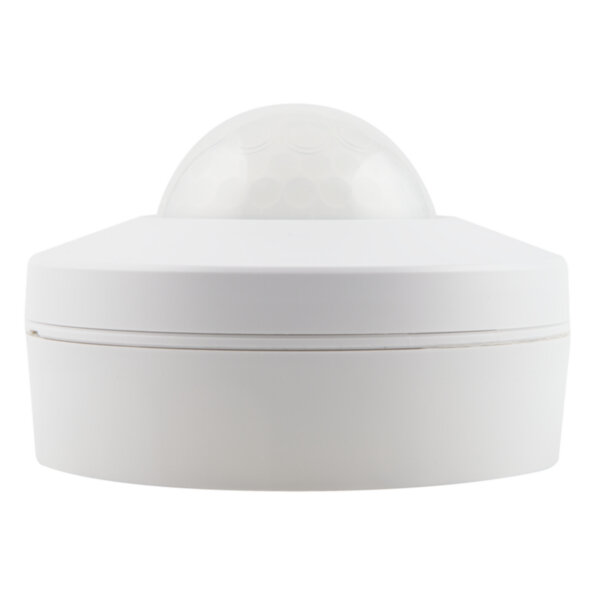

Name: DALI-2 SENSOR PD HB CM - led-sklad.ru
SKU: 4052899630475
Availability: InStock

Protection Class IP54
Detection range optimised for great heights
Robust housing
DALI-2 certified
DALI Bus powered (No mains connection necessary)
Multiple sensors connectable to the same DALI line
Shutter included to optimize sensor detection
Integreatable in light- and building management systems supporting DALI-2 sensors

GTIN	4052899630475
Nominal wattage	0.10 W
Nominal voltage	16 V
Height	69.00 mm
Product weight	130.00 g
Product color	Light grey
Ambient temperature range	-20…+45 °C
Type of protection	IP54
Dimmable	No
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
Diameter	105.00 mm
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	II
Mains frequency	0 Hz
Length	105.00 mm
Width	105.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Dimming interface	DALI-2
Mounting hole spacing, length	68.00 mm
Type of installation	Surface mounting
Maximum installation height	14 m
Detection area	21 m²
Detection angle	360 °
