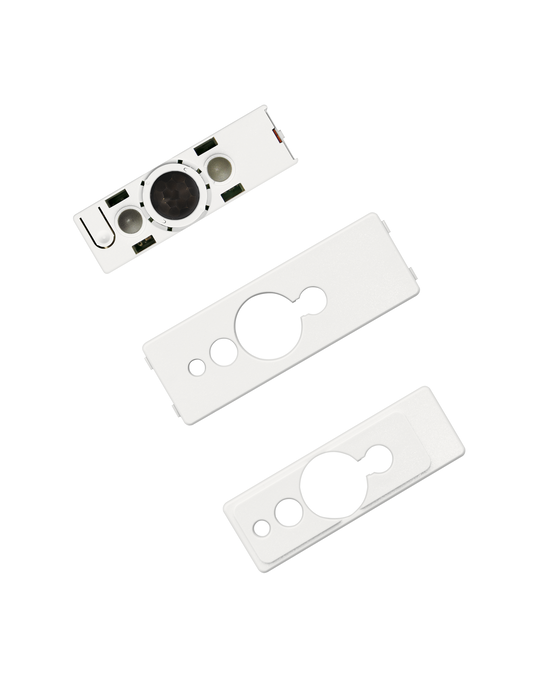

DALI LS/PD LI

DALI LS/PD LI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4052899043954 Категория:
Product benefits
  • Small housing design
  • Presence detection angle adjustable between 40…90° via integrated shutters
Areas of application
  • Installation in industry and office luminaires
  • Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Product features
  • Direct connection to DALI
  • Light and presence sensor for luminaire installation
  • Presence detection via passive IR element
  • Light sensor operating range: 20…800 lx (measured at sensor)
  • Function indicator with two-color LED
  • Mounting height: 2…5 m
Equipment / Accessories
  • Suitable for DALI Professional and DALIeco Control unit
  • Attachable mounting frame for luminaire mounting from inside and outside
GTIN

4052899043954
Nominal voltage

16 V
Height

17.00 mm
Product weight

10.00 g
Product color

Grey
Ambient temperature range

-20…+50 °C
Type of protection

IP20
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Protection class

II
Mains frequency

0 Hz
Length

48.00 mm
Width

15.00 mm
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Approval marks – approval

CE
Type of installation

Ceiling integration/Luminaire integration
Maximum installation height

5 m
Detection area

6 m 1)
Detection angle

80 °
Operating range, light sensor

20…800 lx
