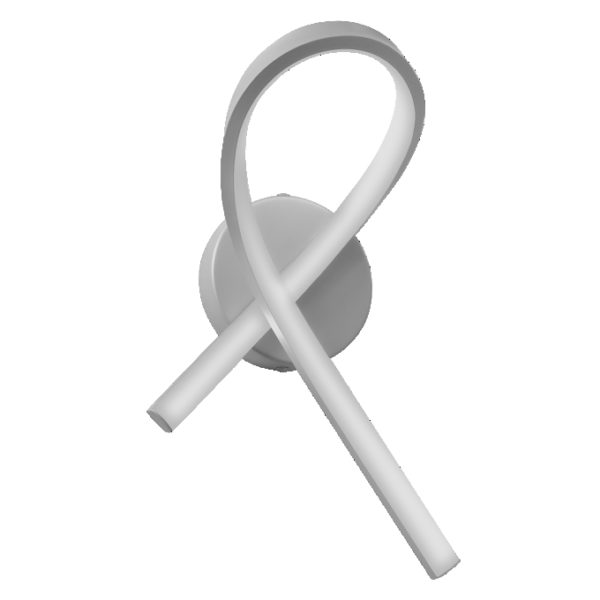

Decor Butterfly Wall 12W CCT Silver

Decor Butterfly Wall 12W CCT Silver

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075856707 Категория:
Product benefits
  • Color temperature adjustment for different application needs
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Color temperature slider (CTS): 2700 K, 4000 K, 6000 K
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4058075856707
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

100 mA
Luminous flux

750 lm
Luminous efficacy

66 lm/W
Color temperature

2700 K / 4000 K / 6000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

124 °
Height

340.00 mm
Product weight

400.00 g
Product color

Silver
Housing color

Silver
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Silicone
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

3 A
Inrush current time Th50

100 µs
Power factor λ

> 0.5
Total harmonic distortion

< 120 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

1450 lm
Max. number of luminaires per miniature circuit breaker B16

133
Max. number of luminaires per miniature circuit breaker C10

76
Max. number of luminaires per miniature circuit breaker C16

123
Protection class IK (shock resistance)

IK03
Length

205.00 mm
Width

120.00 mm
