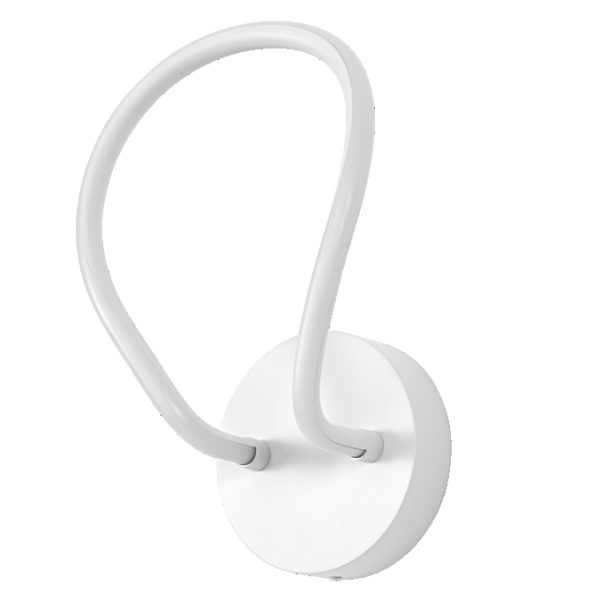

Decor Nody Wall 9W CCT White

Decor Nody Wall 9W CCT White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854659102 Категория:
Product benefits
  • Color temperature adjustment for different application needs
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Color temperature slider (CTS): 2700 K, 4000 K, 6000 K
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854659102
Nominal wattage

9.00 W
Nominal voltage

220…240 V
Nominal current

80.000 mA
Luminous flux

680 lm
Luminous efficacy

75 lm/W
Color temperature

2700 K / 4000 K / 6000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

210 °
Height

315.00 mm
Product weight

470.00 g
Product color

White
Housing color

White
Body material

Aluminum, Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

3 A
Inrush current time Th50

100 µs
Power factor λ

> 0.9
Total harmonic distortion

< 120 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

980 lm
Max. number of luminaires per miniature circuit breaker B16

133
Max. number of luminaires per miniature circuit breaker C10

76
Max. number of luminaires per miniature circuit breaker C16

123
Protection class IK (shock resistance)

IK03
Length

202.00 mm
Width

116.00 mm
