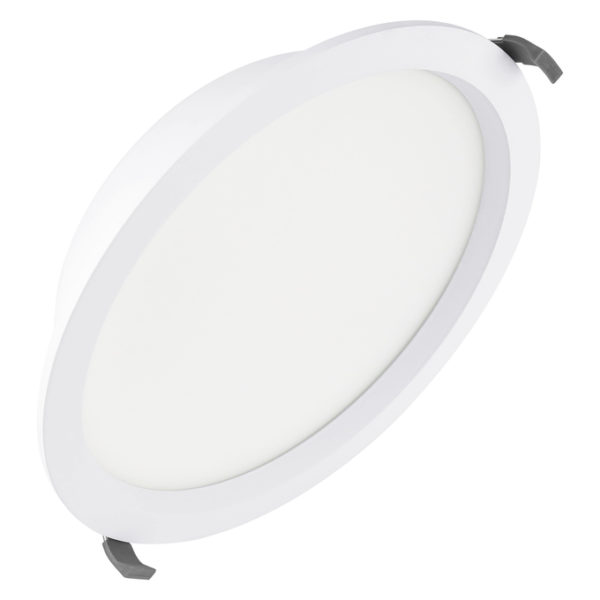

DL CMFT D250 P 42W ML 93040 OP WT

DL CMFT D250 P 42W ML 93040 OP WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854491047 Категория:
Product benefits
  • Energy savings thanks to high system efficacy: up to 120 lm/W
  • Highly versatile due to Multi Select functions
  • High color rendering index CRI > 90
  • External driver for extended flexibility and easy installation
  • Through wiring possible via additional connector box accessory
  • Type of protection: IP44
  • Easy installation with fast connection
  • Further variants with DALI-2 driver, Zigbee driver or Emergency Conversion Kit available
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • Aluminum luminaires with 4 different cut-outs and opal diffuser
  • Very homogenous light distribution
  • External driver with Multi Lumen function of up to 5000 lm
  • Multi Color function
  • Consistent lighting color ≤ 3 SDCM
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Surface mounting frame available as separate accessory
  • Security rope for luminaire included
  • External control gear included
  • Suitable for use with separate Emergency Conversion Box
  • Gray and black exchangeable rings available as separate accessory
  • Extension rings are available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854491047
Nominal wattage

42 W / 36 W / 30 W
Nominal voltage

220…240 V
Nominal current

190/162/138 mA
Luminous flux

5000 lm / 4200 lm / 3600 lm
Luminous efficacy

120 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

100 °
Height

60.00 mm
Product weight

700.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 2-Pole (L, N)
Type of protection

IP44/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Standards

EN
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

265.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

26.4 A
Inrush current time Th50

189 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 15 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

12
Max. number of luminaires per miniature circuit breaker C16

19
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Mounting width

250 mm
Application environment

Indoor
Luminous intensity

—
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

70000 h 1)
Luminous flux in emergency operation mode

379 lm
Mounting diameter

250 mm
Mounting depth

60 mm
Output current

1050/900/760 mA
ECG - Length

120 mm
ECG - Width

41 mm
ECG - Height

28,5 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

3 W
ECG - Output ripple current

≤ 10 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
EPD

LEDV-00053-V01.01-EN
30 W

110 lm/W
36 W

110 lm/W
42 W

110 lm/W
