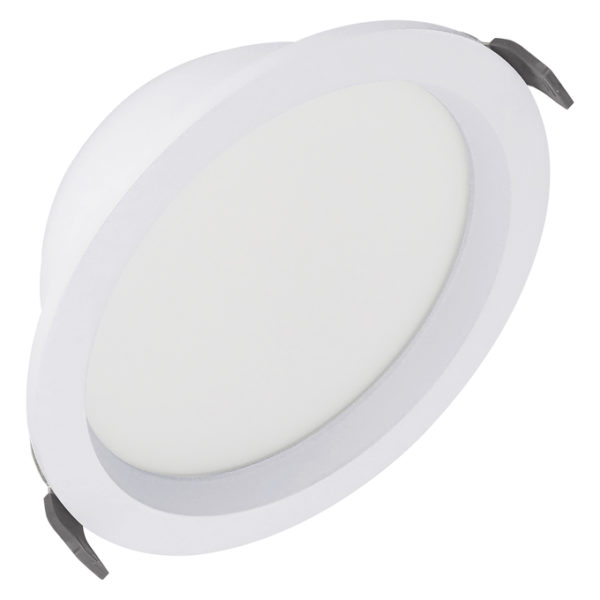

DL CMFT HE DA D150 P 15W 840 OP WT

DL CMFT HE DA D150 P 15W 840 OP WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854687396 Категория:
Product benefits
  • Energy savings thanks to high system efficacy: up to 155 lm/W
  • Through wiring possible via included connector box
  • High grade polycarbonate front frame for reduced overall luminaire weight
  • Uniform light with minimized glare thanks to included reflector and diffuser
  • Well suited for retrofitting using an extension ring as separate accessory
  • DALI-2 certified incl. Parts 251, 252, 253
  • Push-DIM application for easy control
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Consistent lighting color ≤ 3 SDCM
  • External driver with Multi Lumen function of up to 5580 lm
  • Aluminum luminaires with 3 different cut-outs and opal diffuser
  • Very homogenous light distribution
Equipment / Accessories
  • Security rope for luminaire included
  • External control gear included
  • Connector box with 5-pole terminal included
  • Surface mounting frame only available for DALI versions D200 and D250 as separate accessory
  • Gray and black exchangeable rings available as separate accessory
  • Extension rings are available as separate accessory
  • Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854687396
Nominal wattage

15 W / 12 W / 10 W
Nominal voltage

220…240 V
Nominal current

68mA / 59mA / 50 mA
Luminous flux

2175 lm / 1800 lm / 1500 lm
Luminous efficacy

145 lm/W / 150 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

95 °
Height

57.10 mm
Product weight

380.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP44/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Standards

EN
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

160.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

25.2 A
Inrush current time Th50

6.8 µs
Power factor λ

≥ 0.90
Total harmonic distortion

≤ 20 %
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1900 lm
Max. number of luminaires per miniature circuit breaker B16

29
Max. number of luminaires per miniature circuit breaker C10

23
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG1
Type of dimming

DALI-2
Application environment

Indoor
Luminous intensity

900 lm / 800 lm / 650 lm
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

100000 h 1)
Luminous flux in emergency operation mode

390 lm
Mounting diameter

150 mm
Mounting depth

57,0 mm
Output current

350mA / 300mA / 250 mA
Lifespan L90/B10 at 25 °C

65000 h
Surge capability (L-N)

1000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

3 W
ECG - Output ripple current

≤ 10 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

DR DALI-P-30/220-240/700
10 W

150 lm/W
12 W

150 lm/W
15 W

145 lm/W
