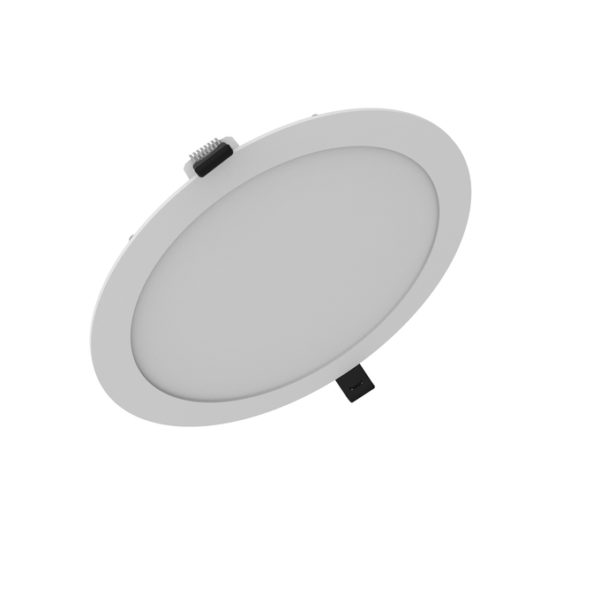

DL SLIM ALU D205 V 19W ML 83040 WT

DL SLIM ALU D205 V 19W ML 83040 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854441844 Категория:
Product benefits
  • Low installation depth
  • Highly versatile due to selectable CCT and lumen steps (Multi Select)
  • Very homogenous light distribution
  • External driver with 3-pole through-wiring feature for flexibility and easy installation
  • Emergency lighting possible with LEDVANCE Emergency Conversion Box
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Very slim aluminum housing with only 23 mm height
  • High luminous efficacy: up to 100 lm/W
  • Multi Lumen function: lumen steps selectable
  • Multi Color function: 3000 K and 4000 K
  • Type of protection: IP44
  • Luminaire available in 5 sizes for different cut-outs
  • Lifetime (L70/B50): 50,000 h (temperature at Ta = 40 °C)
Equipment / Accessories
  • Accessories for surface mounting available
References / Links
  • For Guarantee see
GTIN

4099854441844
Nominal wattage

19 W / 14.3 W / 9.5 W
Nominal voltage

220…240 V
Nominal current

88/68/48 mA
Luminous flux

1900 lm / 1430 lm / 950 lm
Luminous efficacy

100 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

23.00 mm
Product weight

440.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+85 °C
Type of connection

Screwless terminal, 3-Pole (N, E, L)
Type of protection

IP44/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

217.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.60 A
Inrush current time Th50

34 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

70
Max. number of luminaires per miniature circuit breaker C10

35
Max. number of luminaires per miniature circuit breaker C16

60
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
Luminous intensity

—
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

35000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

320 lm
Mounting diameter

205 mm
Mounting depth

23.0 mm
Output current

430 mA
ECG - Length

175 mm
ECG - Width

55 mm
ECG - Height

31 mm
Lifespan L90/B10 at 25 °C

15000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

2,5 W
ECG - Output ripple current

< 10 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
EPD

LEDV-00050-V01.01-EN
9.5 W

100 lm/W
19 W

100 lm/W
14.3 W

100 lm/W
