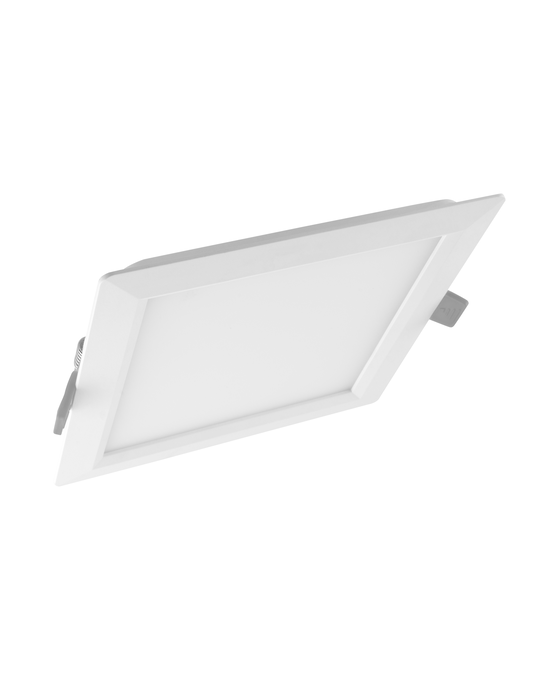

DL SLIM SQ 210 18 W 6500 K WT

DL SLIM SQ 210 18 W 6500 K WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075079373 Категория:
Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • Simple installation thanks to integrated driver
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Small visible bezel
  • Connector box with push wire terminal for tool-free connection
  • Light guide made of non-yellowing PMMA for long lifetime
Equipment / Accessories
  • Surface mounting frames available as accessories
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4058075079373
Nominal wattage

18.00 W
Nominal voltage

220…240 V
Nominal current

108 mA
Luminous flux

1530 lm
Luminous efficacy

85 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

30.00 mm
Product weight

527.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+50 °C
Temperature range at storage

-30…+70 °C
Type of connection

Screwless terminal, 2-Pole
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

17.0 A
Inrush current time Th50

56 µs
Power factor λ

0.50
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

44
Max. number of luminaires per miniature circuit breaker C10

35
Max. number of luminaires per miniature circuit breaker C16

56
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

225.00 mm
Width

225.00 mm
Mounting width

210,0 mm
Mounting length

210,0 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Lifespan L80/B10 at 25 °C

20000 h 1)
Number of illuminants

Not relevant
Light emitting surface material

Polycarbonate (PC)
Mounting depth

50,0 mm
Output current

295 mA
Lifespan L90/B10 at 25 °C

12000 h
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 6.5 %
EPD

LEDV-00043-V01.01-EN
