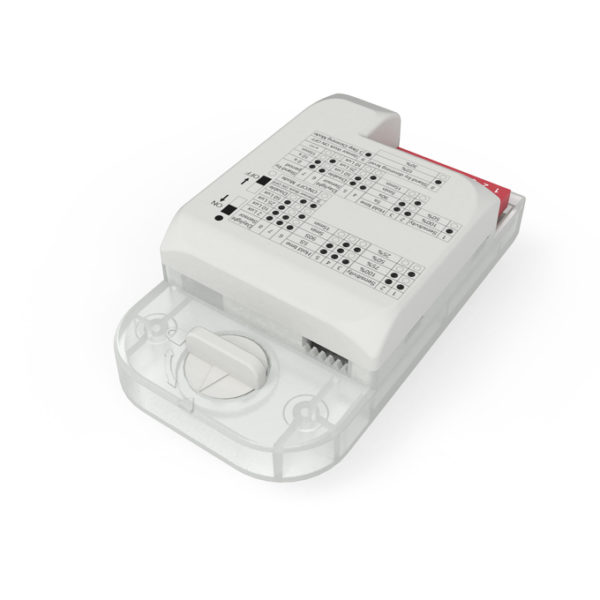

Name: DP BATTEN CBO SENSOR LS PD 8 MW INT - led-sklad.ru
SKU: 4099854521461
Availability: InStock

Plug & Upgrade concept to extend the On/Off luminaire to a sensor luminaire
Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
Simple tool-free mounting in the luminaire

Plug & Upgrade high frequency sensor for converting DP / BATTEN / LN SF COMBO luminaires into sensor luminaires

GTIN	4099854521461
Nominal wattage	0.36 W
Nominal voltage	220…240 V
Nominal current	< 2 mA
Height	35.00 mm
Product weight	40.00 g
Product color	White
Body material	Polycarbonate (PC)
Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal
Type of protection	IP20
Dimmable	No
Lifespan L70/B50 at 25 °C	60000 h 1)
Number of switching cycles	25000
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
Replaceable light source	No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	II
Mercury content	0.0 mg
Protection class IK (shock resistance)	IK06
Length	82.00 mm
Width	43.50 mm
Type of sensor	Motion
Sensor technology	Microwave
Sensor detection angle	120 °
Detection range of motion sensor	4 m
Detection threshold of daylight sensor	10…50 lx
Sensor controlled switching time	5 s…15 min
ECG lifetime	60000 h
RAL Color (most similar)	RAL 9003
EPD	LEDV-00063-V01.01-EN
