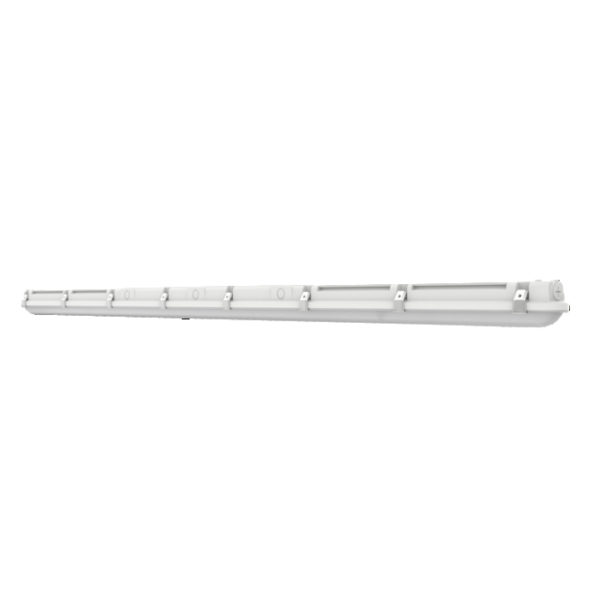

DP CBO 1800 V 60W ML 84065 IP66 GY

DP CBO 1800 V 60W ML 84065 IP66 GY

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854521416 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 153 lm/W
  • Type of protection: IP66
  • Impact resistance: IK10
  • Luminous flux: up to 9,000 lm
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through wiring possible
Equipment / Accessories
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • Mounting screws and dowels included
Safety advice
  • Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
References / Links
  • For Guarantee see
GTIN

4099854521416
Nominal wattage

60 W / 50 W / 40 W / 30.0 W
Nominal voltage

220…240 V
Nominal current

260mA / 222mA / 178mA / 141 mA
Luminous flux

9000 lm / 7550 lm / 6080 lm / 4590 lm
Luminous efficacy

150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W
Color temperature

4000 K / 6500 K
Light color (designation)

Cool Whi
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

78.00 mm
Product weight

2120.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Push-in
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

60000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

20 A
Inrush current time Th50

118 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

33
Max. number of luminaires per miniature circuit breaker C10

25
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK10 1)
Length

1870.00 mm
Width

97.00 mm
Application environment

Indoor
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

300 lm
Output current

190mA / 250mA / 310mA / 360 mA
Lifespan L90/B10 at 25 °C

25000 h
Low flicker

Yes
RAL Color (most similar)

RAL 830-1
Wattage in emergency operation mode

2 W
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
EPD

LEDV-00064-V01.01-EN
30 W

153 lm/W
40 W

152 lm/W
50 W

151 lm/W
60 W

150 lm/W
