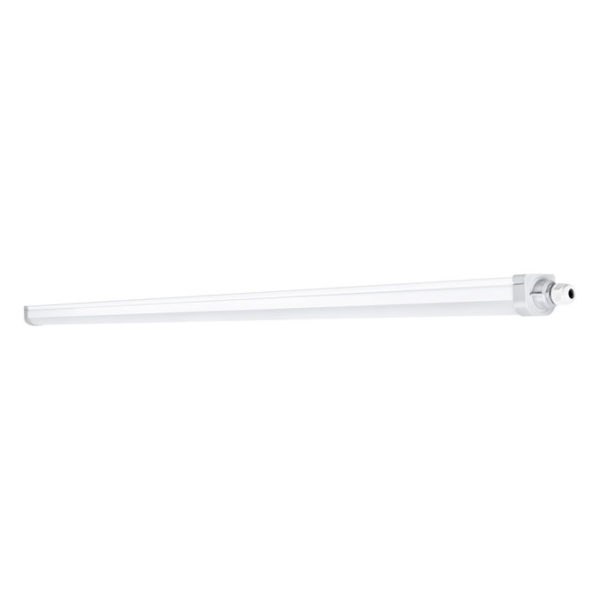

DP COMP 1500 V 50W 840 IP66 PS

DP COMP 1500 V 50W 840 IP66 PS

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075740891 Категория:
Product benefits
  • Highly versatile due to available Multi Lumen versions that allow 2 different lumen packages
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • Uniform light distribution
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • Multi Lumen option available to select between 2 lumen packages
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
  • High luminous efficacy: up to 123 lm/W
  • Polycarbonate housing IP66 and IK08
  • Beam angle: 120°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4058075740891
Nominal wattage

50 W / 34 W 1)
Nominal voltage

220…240 V
Nominal current

228.000 mA 1)
Luminous flux

6100 lm / 4200 lm 1)
Luminous efficacy

123 lm/W / 122 lm/W 1)
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

5 sdcm
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

53.00 mm
Product weight

860.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+80 °C
Type of connection

Screwless terminal, 3-Pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

75000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface/Suspended
Mounting location

Wa
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

35.2 A
Inrush current time Th50

4.48 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

33
Max. number of luminaires per miniature circuit breaker C10

27
Max. number of luminaires per miniature circuit breaker C16

44
Protection class IK (shock resistance)

IK08
Length

1543.00 mm
Width

60.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Output current

570 mA
Lifespan L90/B10 at 25 °C

25000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 20 %
EPD

LEDV-00004-V01.01-EN
34 W

152 lm/W
50 W

228 lm/W
