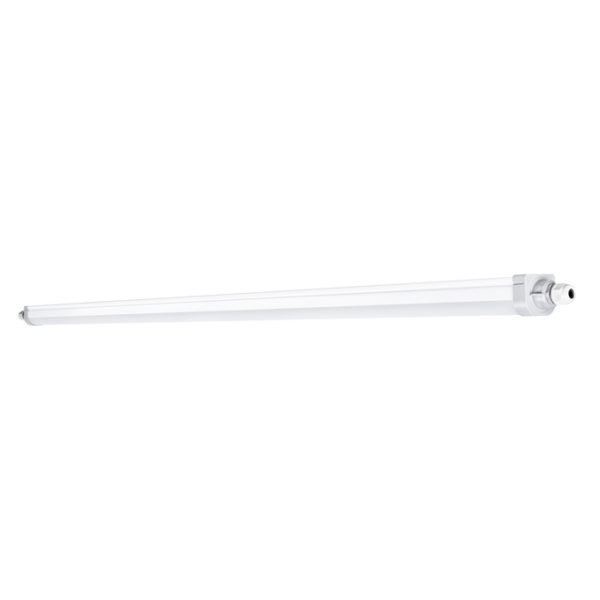

DP COMP TH 1500 V 54W ML 8405065 IP66

DP COMP TH 1500 V 54W ML 8405065 IP66

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854794674 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • Uniform light distribution
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • Multi Lumen function: lumen steps selectable
  • Multi Color function: 4000 K, 5000 K and 6500 K
  • High luminous efficacy: up to 140 lm/W
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
  • Through-wiring 3×1.5mm² already installed
  • Polycarbonate housing IP66 and IK08
  • Beam angle: 120°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854794674
Nominal wattage

54 W / 33 W
Nominal voltage

220…240 V
Nominal current

232mA / 145 mA
Luminous flux

7560 lm / 4620 lm
Luminous efficacy

140 lm/W
Color temperature

4000 K / 5000 K / 6500 K
Light color (designation)

Cool Whi
Color rendering index Ra

≥80
Standard deviation of color matching

≤5 sdcm
Flickering metric (Pst LM)

< 1
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

53.00 mm
Product weight

970.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+80 °C
Type of connection

Screwless terminal, 3-Pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

75000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Suspended
Mounting location

Wa
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

5.28 A
Inrush current time Th50

1600 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

16
Max. number of luminaires per miniature circuit breaker C10

17
Max. number of luminaires per miniature circuit breaker C16

27
Protection class IK (shock resistance)

IK08
Length

1585.00 mm
Width

60.00 mm
Application environment

Indoor
Product remark

Available from June 2026
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Output current

115 mA / 71 mA
Lifespan L90/B10 at 25 °C

25000 h
Surge capability (L-N)

1 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 20 %
33 W

140 lm/W
54 W

140 lm/W
