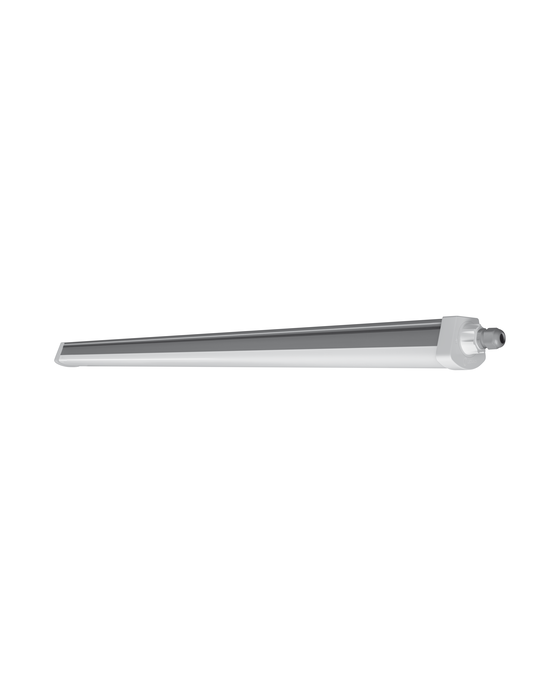

DP COMPACT 1500 55 W 6500K IP66 GR

DP COMPACT 1500 55 W 6500K IP66 GR

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075210127 Категория:
Product benefits
  • Uniform light distribution
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP66
  • Beam angle: 120°
  • Through-wiring 3×1.5mm² already installed
  • Polycarbonate housing
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4058075210127
Nominal wattage

55.00 W
Nominal voltage

220…240 V
Nominal current

300 mA
Luminous flux

6700 lm
Luminous efficacy

120 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0.9
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

68.00 mm
Product weight

1380.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-35…+50 °C
Temperature range at storage

-40…+70 °C
Type of connection

Screwless terminal, 3-Pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

13 A
Inrush current time Th50

170 µs
Power factor λ

> 0.90
Total harmonic distortion

20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

32
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

42
Protection class IK (shock resistance)

IK08
Length

1590.00 mm
Width

86.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

35000 h 1)
Light emitting surface material

Polycarbonate (PC)
Output current

610 mA
Lifespan L90/B10 at 25 °C

20000 h
Low flicker

Yes
RAL Color (most similar)

RAL 7045
EPD

LEDV-00003-V01.01-EN
