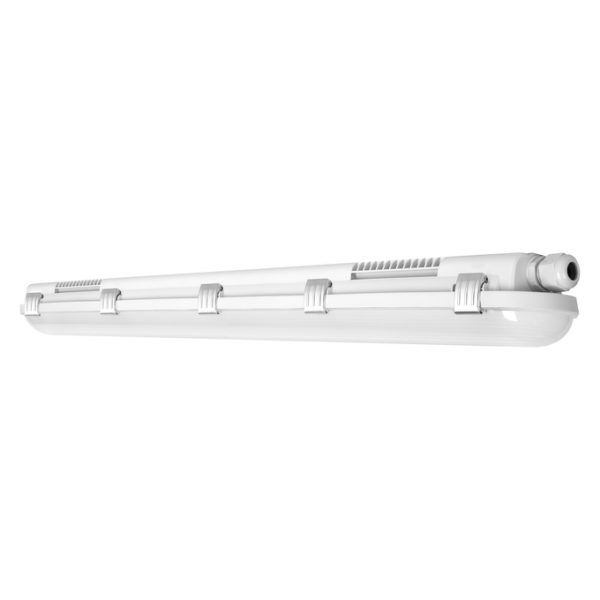

DP DALI 1200 32W 830 IP65 GY

DP DALI 1200 32W 830 IP65 GY

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075541689 Категория:
Product benefits
  • High compatibility thanks to DALI-2 certification
  • Premium driver with up to 100,000 h lifetime
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Driver configuration and dimming possible via mains
  • Low flicker ≤ 3 %
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • DALI installations
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 139 lm/W
  • Type of protection: IP65
  • Beam angle: 110°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
  • For Guarantee see
GTIN

4058075541689
Nominal wattage

32.00 W
Nominal voltage

220…240 V
Nominal current

155 mA
Luminous flux

4000 lm
Luminous efficacy

125 lm/W
Color temperature

3000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

4 sdcm
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

68.00 mm
Product weight

1430.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-25…+40 °C
Temperature range at storage

-25…+80 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

0/50/60 Hz
Inrush current

29 A
Inrush current time Th50

180 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

13
Max. number of luminaires per miniature circuit breaker C10

21
Max. number of luminaires per miniature circuit breaker C16

36
Protection class IK (shock resistance)

IK08
Length

1200.00 mm
Width

82.00 mm
Type of dimming

DALI
Application environment

Indoor
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

50000 h 1)
Light emitting surface material

Polycarbonate (PC)
Output current

370 mA
Lifespan L90/B10 at 25 °C

44000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9018
IoT ready

Support of DALI data type PART 251, 252, 253 1)
ECG - Output voltage

79 V
