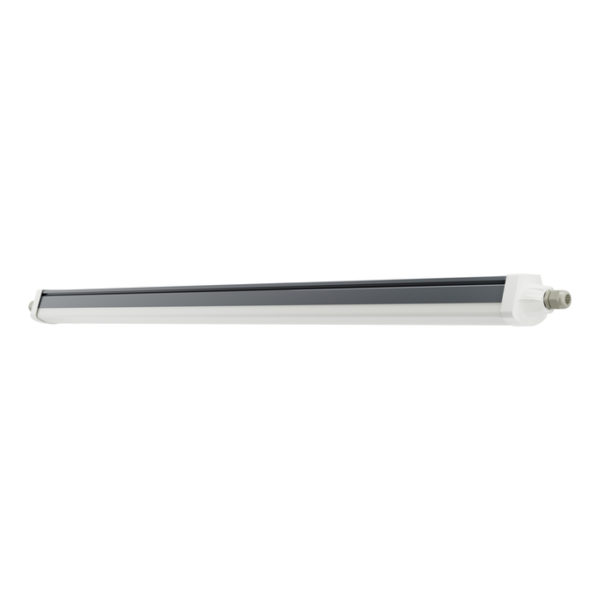

DP FLEX EL 1200 P 34W ML 830 IP66

DP FLEX EL 1200 P 34W ML 830 IP66

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854717796 Категория:
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
  • Underground parking
Product features
  • High luminous efficacy: up to 165 lm/W
  • Luminaire suitable for normal lighting and emergency lighting
  • Suitable for emergency central battery installations acc. to EN 60598-2-22
  • Self-contained luminaires
  • Luminous flux in emergency operation mode: 500 lm
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Protection rating: IP66
  • Impact resistance: IK08
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
  • EVERLOOP luminaire: upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854717796
Nominal wattage

34 W / 31 W / 26 W / 20 W
Nominal voltage

220…240 V
Nominal current

158mA / 145mA / 126mA / 97 mA
Luminous flux

5500 lm / 4900 lm / 4200 lm / 3000 lm
Luminous efficacy

162 lm/W / 158 lm/W / 150 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

73.00 mm
Product weight

1585.00 g
Product color

Grey
Housing color

Grey
Body material

Polycarbonate (PC)
Ambient temperature range

+5…+35 °C
Temperature range at storage

+5…+35 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

20 A
Inrush current time Th50

187 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 25 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

26
Max. number of luminaires per miniature circuit breaker C10

28
Max. number of luminaires per miniature circuit breaker C16

42
Protection class IK (shock resistance)

IK08
Length

1320.00 mm
Width

88.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

6000 mAh
Added function

EVERLO
Lifespan L80/B10 at 25 °C

100000 h 1)
Battery charging time

24 h
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

500 lm
Battery life in emergency operation mode

3 h
UGR

≤ 25.4
Output current

225/125 mA
Lifespan L90/B10 at 25 °C

83000 h
Type of emergency light operation

Maintain
Surge capability (L-N)

1000 V
Low flicker

Yes
RAL Color (most similar)

RAL 7045
Wattage in emergency operation mode

3.2 W
ECG - Output ripple current

5 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighti
20 W

150 lm/W
26 W

162 lm/W
34 W

162 lm/W
31 W

158 lm/W
