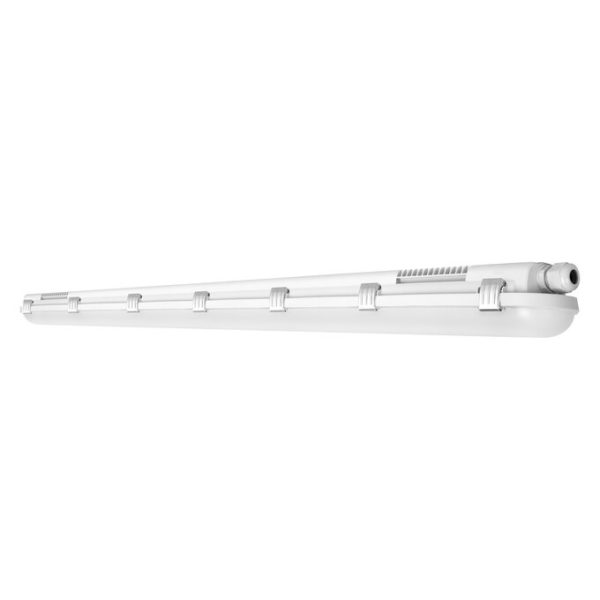

DP HE 5TH 1500 P 40W ML 840 IP65

DP HE 5TH 1500 P 40W ML 840 IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854407031 Категория:
Product benefits
  • Through-wiring 5×2.5mm² already installed
  • Uniform light distribution
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Enables participation in funding programs in certain countries to replace light source and driver
  • Easy installation, no tools required for connection
  • Low flicker ≤ 5 %
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
  • Underground parking
Product features
  • Very high luminous efficacy: up to 164 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 25 °C)
  • Housing and diffuser material: polycarbonate (PC)
  • Multi Lumen function: lumen steps selectable
  • Compatible to Zhaga Book 26 LED light sources
  • Beam angle: 120°
  • Protection rating: IP65
  • Impact resistance: IK08
Equipment / Accessories
  • Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
  • EVERLOOP luminaire: upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854407031
Nominal wattage

39.3 W / 35.0 W / 31.1 W / 26.9 W / 23.4 W / 20.0 W / 16.0 W
Nominal voltage

220…240 V
Nominal current

250/225/200/175/150/125/100 mA
Luminous flux

6400 lm / 5700 lm / 5070 lm / 4360 lm / 3810 lm / 3240 lm / 2590 lm
Luminous efficacy

163 lm/W / 162 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 4 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

68.00 mm
Product weight

1826.00 g
Product color

Grey
Housing color

Grey
Body material

Polycarbonate (PC)
Ambient temperature range

-25…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

0/50/60 Hz
Inrush current

9.8 A
Inrush current time Th50

565 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

15
Max. number of luminaires per miniature circuit breaker C16

25
Protection class IK (shock resistance)

IK08
Length

1510.00 mm
Width

82.00 mm
Application environment

Indoor
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function

EVERLO
Lifespan L80/B10 at 25 °C

100000 h 1)
Light emitting surface material

Polycarbonate (PC)
Output current

250 mA
Lifespan L90/B10 at 25 °C

60000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9018
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
16 W

162 lm/W
20 W

162 lm/W
35 W

163 lm/W
39,3 W

163 lm/W
31,1 W

163 lm/W
26,9 W

162 lm/W
23,4 W

163 lm/W
