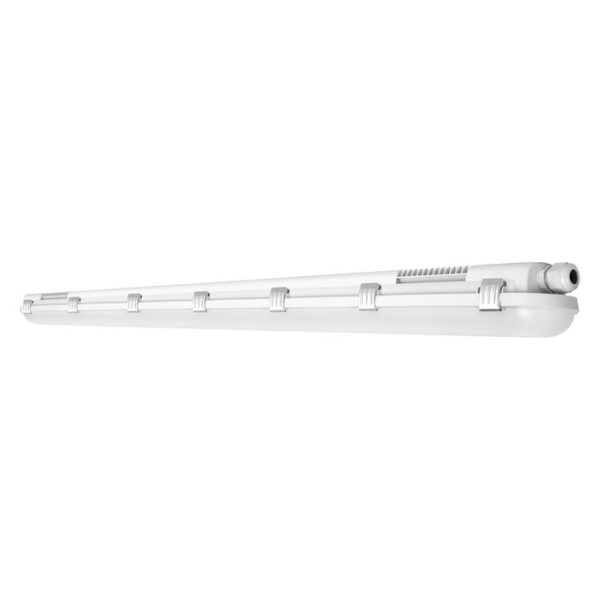

DP HE EL 1500 P 40W ML 840 IP65

DP HE EL 1500 P 40W ML 840 IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854407079 Категория:
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution
  • Enables participation in funding programs in certain countries to replace light source and driver
  • Easy installation, no tools required for connection
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
  • Underground parking
Product features
  • Luminaire suitable for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
  • Self-contained luminaires
  • Luminous flux in emergency operation mode: 450 lm
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Housing and diffuser material: polycarbonate (PC)
  • Multi Lumen function: lumen steps selectable
  • Compatible to Zhaga Book 26 LED light sources
  • Beam angle: 120°
  • Protection rating: IP65
Equipment / Accessories
  • Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
  • EVERLOOP luminaire: upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854407079
Nominal wattage

39.8 W / 35.6 W / 31.7 W / 27.5 W / 24.0 W / 20.6 W / 16.6 W
Nominal voltage

220…240 V
Nominal current

175/165/150/130/115/100/85 mA
Luminous flux

6400 lm / 5700 lm / 5070 lm / 4360 lm / 3810 lm / 3240 lm / 2590 lm
Luminous efficacy

161 lm/W / 160 lm/W / 159 lm/W / 157 lm/W / 156 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 4 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

68.00 mm
Product weight

1930.00 g
Product color

Grey
Housing color

Grey
Body material

Polycarbonate (PC)
Ambient temperature range

+5…+35 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50/60 Hz
Inrush current

9.8 A
Inrush current time Th50

565 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

By the end consumer
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

15
Max. number of luminaires per miniature circuit breaker C16

25
Protection class IK (shock resistance)

IK08
Length

1500.00 mm
Width

82.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

6000 mAh
Added function

EVERLO
Lifespan L80/B10 at 25 °C

100000 h 1)
Battery charging time

24 h
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

450 lm
Battery life in emergency operation mode

3 h
Output current

250 mA
Lifespan L90/B10 at 25 °C

59000 h
Type of emergency light operation

Maintain
Luminous flux in maintained operation mode

6400 lm
Low flicker

Yes
RAL Color (most similar)

RAL 9018
Wattage in emergency operation mode

3 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

40 W
39.8 W

161 lm/W
35.6 W

160 lm/W
31.7 W

160 lm/W
27.5 W

159 lm/W
24.0 W

159 lm/W
20.6 W

157 lm/W
16.6 W

156 lm/W
