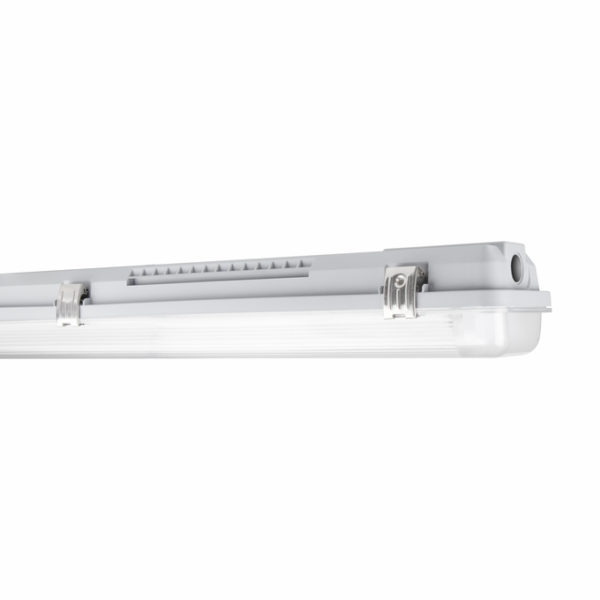

DP HOUSING 1200 P 2XLAMP IP65

DP HOUSING 1200 P 2XLAMP IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854118111 Категория:
Product benefits
  • Easy and quick installation
  • Prewired for easy installation of tubular AC LED lamps
  • Toolless installation
  • Robust housing
  • Sustainable solution thanks to exchangeable light sources
  • 5 years guarantee
Areas of application
  • Parking lots, warehouses, production areas
  • Car parks and underpasses
  • Garages
Product features
  • Luminaire housing, available for 1 or 2 T8 LED tubes
  • Suitable for LED TUBE T8 EM and LED TUBE T8 CONNECTED
  • Type of protection: IP65
  • Integrated electrical fuse
Equipment / Accessories
  • All required accessories included
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854118111
Nominal voltage

220…240 V
Height

70.00 mm
Product weight

899.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-30…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 3-Pole (N, E, L)
Type of protection

IP65
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

No
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Glow Wire Test according to IEC 60695-2-12

850 °C
Protection class IK (shock resistance)

IK08
Length

1280.00 mm
Width

95.00 mm
Application environment

Indoor
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Holder designation

G13
Light emitting surface material

Polycarbonate (PC)
RAL Color (most similar)

RAL 7040
