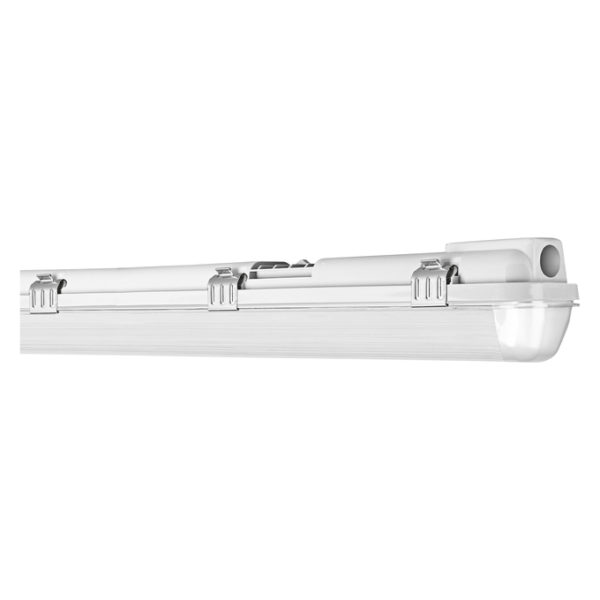

DP HOUSING 1500 1x Lamp IP65

DP HOUSING 1500 1x Lamp IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075312470 Категория:
Product benefits
  • Prewired for easy installation of tubular AC LED lamps
  • Robust housing
  • Easy and quick installation
  • 5 years guarantee
Areas of application
  • Parking lots, warehouses, production areas
Product features
  • Luminaire housing, available for 1 or 2 T8 LED lamps
  • Type of protection: IP65
  • Suitable for SubstiTUBE EM/UN and SubstiTUBE Connected
Equipment / Accessories
  • All required accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4058075312470
Nominal voltage

220…240 V
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Beam angle

105 °
Height

75.00 mm
Product weight

1300.00 g
Product color

Grey
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…80 °C
Type of connection

Screw terminal
Type of protection

IP65
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Additional info can be provided per individual request
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

No
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Glow Wire Test according to IEC 60695-2-12

650 °C
Protection class IK (shock resistance)

IK08
Length

1561.00 mm
Width

64.00 mm
Application environment

Indoor
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Luminous intensity

—
Number of illuminants

—
Light emitting surface material

Polycarbonate (PC)
