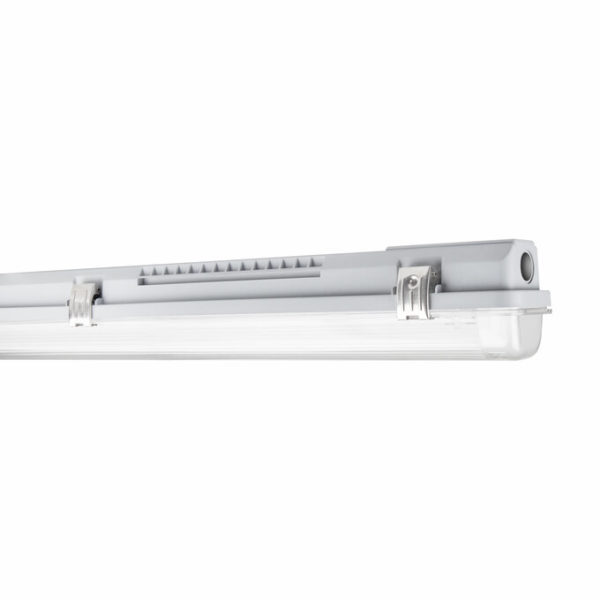

DP HOUSING DALI 1200 P 1XLAMP IP65

DP HOUSING DALI 1200 P 1XLAMP IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854146442 Категория:
Product benefits
  • Easy and quick installation
  • Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
  • Toolless installation
  • Robust housing
  • Sustainable solution thanks to exchangeable light sources
  • 5 years guarantee
Areas of application
  • Parking lots, warehouses, production areas
  • Dimmable installations
  • Car parks and underpasses
  • Garages
Product features
  • Luminaire housing, available for 1 or 2 T8 LED tubes
  • Dimmable EXTERNAL SYSTEM Driver is already installed
  • Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
  • DALI 2.0 interface for light management system integration
  • Integrated electrical fuse
  • Type of protection: IP65
Equipment / Accessories
  • Through-wiring cable kit available
  • Stainless steel clamps and M20 cable gland included
References / Links
  • For Guarantee see
GTIN

4099854146442
Nominal voltage

220…240 V
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Height

70.00 mm
Product weight

966.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP65
Dimmable

Yes
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

No
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Protection class IK (shock resistance)

IK08
Length

1280.00 mm
Width

65.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Added function

VIVARES
Holder designation

G13
Light emitting surface material

Polycarbonate (PC)
RAL Color (most similar)

RAL 7040
ECG - Output ripple current

≤ 5 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
