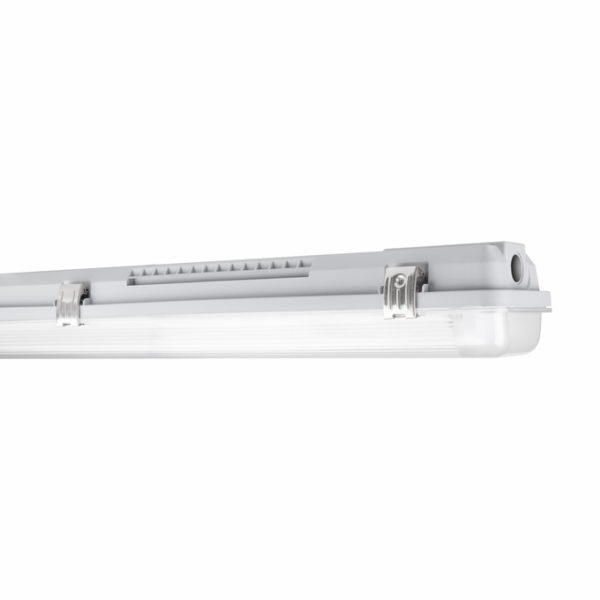

DP HOUSING EM 1200 P 2XLAMP IP65

DP HOUSING EM 1200 P 2XLAMP IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854148903 Категория:
Product benefits
  • Easy and quick installation
  • Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
  • Toolless installation
  • Robust housing
  • Sustainable solution thanks to exchangeable light sources
  • 5 years guarantee
Areas of application
  • Parking lots, warehouses, production areas
  • Emergency lighting for single battery systems
  • Dimmable installations
  • Car parks and underpasses
  • Garages
Product features
  • Luminaire housing, available for 1 or 2 T8 LED tubes
  • Dimmable EXTERNAL SYSTEM Driver, Emergency unit and Battery are already installed
  • Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
  • DALI 2.0 interface for light management system integration
  • Integrated electrical fuse
  • Type of protection: IP65
Equipment / Accessories
  • Stainless steel clamps and M20 cable gland included
References / Links
  • For Guarantee see
GTIN

4099854148903
Nominal voltage

220…240 V
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Height

70.00 mm
Product weight

1489.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

+5…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP65
Dimmable

Yes
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

No
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Protection class IK (shock resistance)

IK08
Length

1280.00 mm
Width

95.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Holder designation

G13
Battery charging time

>12 h
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

320 lm
Battery life in emergency operation mode

3 h
Type of emergency light operation

Maintained
RAL Color (most similar)

RAL 7040
Wattage in emergency operation mode

3,0 W
ECG - Output ripple current

≤ 5 %
Area of emergency application

Anti-panic lighti
