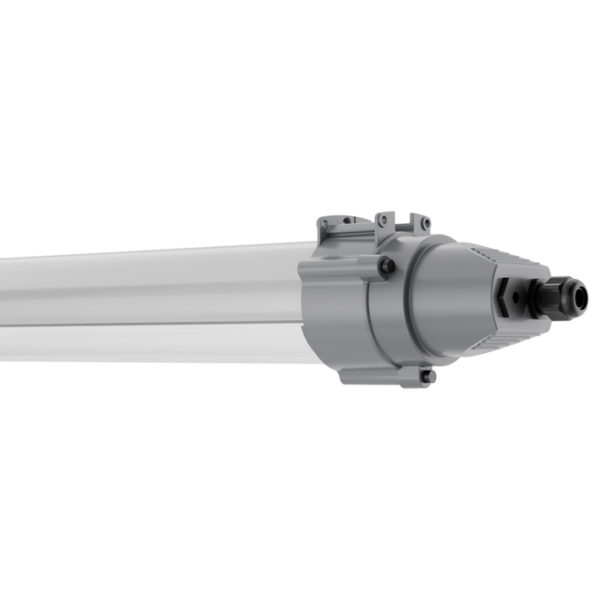

DP MAX 600 S 15W 840 VW IP69

DP MAX 600 S 15W 840 VW IP69

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075849785 Категория:
Product benefits
  • Uniform light distribution
  • Flexible application through a wide range of beam angles
  • Versatile applications due to resistance to many chemicals and UV light
  • Easy to clean, even at high temperatures with a high-pressure cleaner
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
  • Low flicker ≤ 5 %
Areas of application
  • Food industry
  • Open car parks and underpasses
  • Car wash facilities
  • Outdoor applications
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
Product features
  • High luminous efficacy: up to 158 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 35 °C)
  • Type of protection: IP66, IP69 (80 °C)
  • Impact resistance: IK10
  • Ammonia resistant
  • UV-resistant PMMA diffuser
  • Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories
  • Stainless steel clamps and M25 cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4058075849785
Nominal wattage

15.00 W
Nominal voltage

220…240 V
Nominal current

65 mA
Luminous flux

2000 lm
Luminous efficacy

133 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

133 ° x 107 °
Height

138.00 mm
Product weight

3000.00 g
Product color

Grey
Housing color

Grey
Body material

Polymethylmethacrylate (PMMA)
Ambient temperature range

-25…+45 °C
Temperature range at storage

-40…+45 °C
Type of connection

Screwless terminal, 3-Pole
Type of protection

IP66/IP69K
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

> 200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Suspended
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

0/50/60 Hz
Inrush current

41 A
Inrush current time Th50

124 µs
Power factor λ

≥0.77
Total harmonic distortion

15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

2215 lm
Max. number of luminaires per miniature circuit breaker B16

26
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

43
Protection class IK (shock resistance)

IK10
Length

885.00 mm
Width

125.00 mm
Application environment

Outdoor
Lifespan L80/B10 at 25 °C

100000 h 1)
Light emitting surface material

Polymethylmethacrylate (PMMA)
UGR

< 25
Output current

125…550 mA
Surge capability (L-N)

1 kV
Surge capability (L/N-Ground)

2 kV
Low flicker

Yes
ECG - Output ripple current

< 1 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
