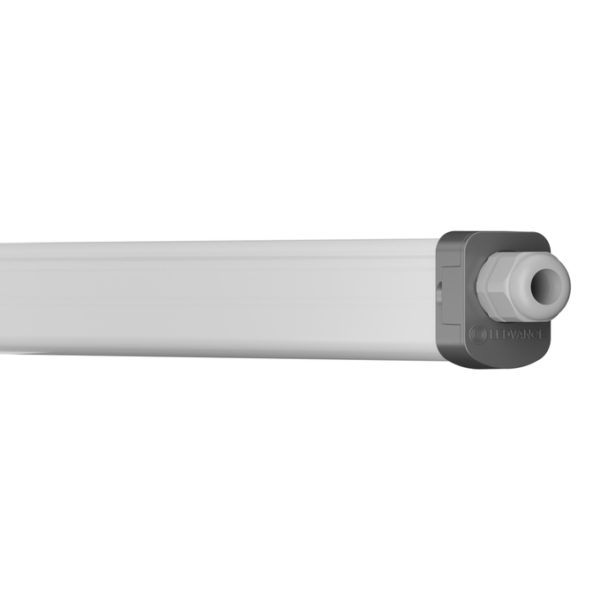

DP SLIM 1500 V 39W ML 840 IP65

DP SLIM 1500 V 39W ML 840 IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854720291 Категория:
Product benefits
  • Uniform light distribution
  • Energy savings of up to 65 % (compared to luminaires that use fluorescent lamps)
  • Very slim housing
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
  • Easy access to electrical terminal thanks end caps with clip mechanism
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 140 lm/W
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
  • Housing and diffuser material: polycarbonate (PC)
  • Multi Lumen function: lumen steps selectable
  • Beam angle: 120°
  • Type of protection: IP65
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854720291
Nominal wattage

39 W / 26 W
Nominal voltage

220…240 V
Nominal current

170.000 mA
Luminous flux

5500 lm / 3600 lm
Luminous efficacy

140 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

48.00 mm
Product weight

490.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 2-Pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

18.2 A
Inrush current time Th50

138 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

33
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

42
Protection class IK (shock resistance)

IK08
Length

1535.00 mm
Width

35.00 mm
Application environment

Indoor
Product remark

Available from March 20
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Output current

180 mA
Lifespan L90/B10 at 25 °C

47000 h
Mounting height

0 m
Surge capability (L-N)

1 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 5 %
EPD

LEDV-00077-V01.01-EN
26 W

140 lm/W
39 W

140 lm/W
