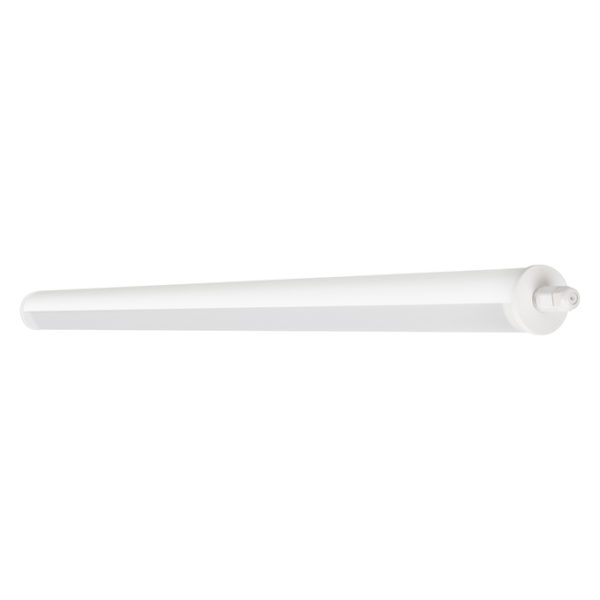

DP SPECIAL 1500 50 W 4000 K WT IP67

DP SPECIAL 1500 50 W 4000 K WT IP67

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075452176 Категория:
Product benefits
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy installation, no tools required for connection
  • Uniform light distribution
  • Energy savings of up to 55 % (compared to luminaires that use fluorescent lamps)
  • 5 years guarantee
Areas of application
  • Keeping farm animals
  • Food industry
  • Open car parks and underpasses
  • Garages
  • Workshops, assembly lines
  • Outdoor applications
Product features
  • Ammonia resistant
  • Sealed housing made of PMMA
  • Through-wiring cable already installed
  • Type of protection: IP67 (DIN EN 60529), IP69K (ISO 20653:2013)
References / Links
  • For Guarantee see
GTIN

4058075452176
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

250 mA
Luminous flux

6500 lm
Luminous efficacy

130 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

82.00 mm
Product weight

1460.00 g
Product color

White
Housing color

White
Body material

Polymethylmethacrylate (PMMA)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+70 °C
Type of connection

Screwless terminal, 3-Pole
Type of protection

IP67~IP69K
Dimmable

No
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

74.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50/60 Hz
Inrush current

13 A
Inrush current time Th50

212 µs
Power factor λ

≥0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

24
Max. number of luminaires per miniature circuit breaker C10

21
Max. number of luminaires per miniature circuit breaker C16

34
Protection class IK (shock resistance)

IK06
Length

1644.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Lifespan L80/B10 at 25 °C

50000 h 1)
Light emitting surface material

PMMA
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9214
ECG - Output ripple current

< 10 %
