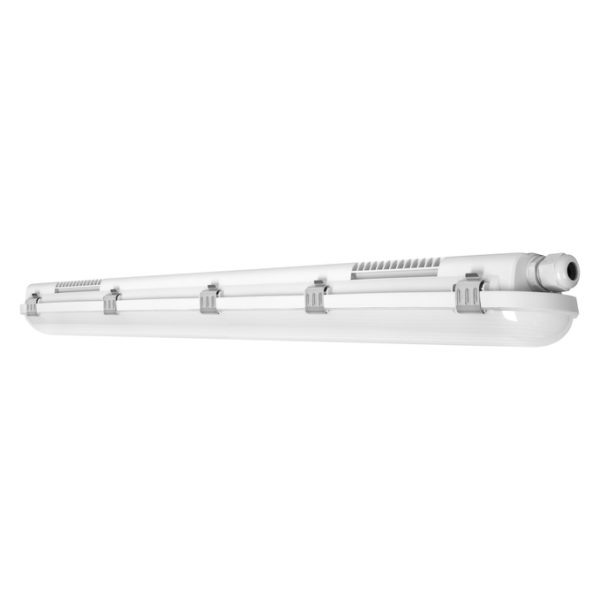

DP VAL 1200 20W 4000K IP65

DP VAL 1200 20W 4000K IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075300781 Категория:
Product benefits
  • Uniform light distribution
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation, no tools required for connection
  • 3 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP65
  • Beam angle: 115°
  • Through-wiring possible
  • Polycarbonate housing
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4058075300781
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

110 mA
Luminous flux

2400 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

115 °
Height

68.00 mm
Product weight

1485.00 g
Product color

Gray
Housing color

Gray
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+70 °C
Type of connection

Screwless
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

12 A
Inrush current time Th50

110 µs
Power factor λ

≥0.90
Total harmonic distortion

< 25 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Max. number of luminaires per miniature circuit breaker B16

62
Max. number of luminaires per miniature circuit breaker C10

50
Max. number of luminaires per miniature circuit breaker C16

80
Protection class IK (shock resistance)

IK08
Length

1200.00 mm
Width

77.00 mm
Application environment

Indoor
Product remark

When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Luminous intensity

—
Light emitting surface material

Polycarbonate (PC)
Output current

180 mA
RAL Color (most similar)

RAL 7514
