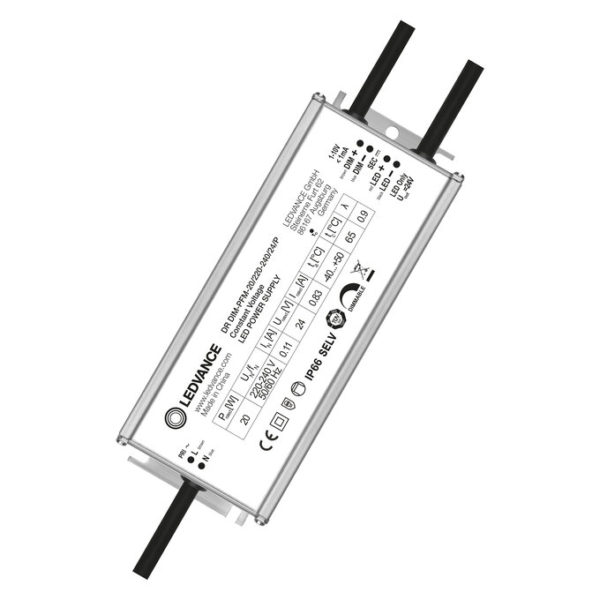

DR DIM-PFM -20/220-240/24/P

Product benefits

• Perfectly matched to 24 V LED flexible strips
• 5 years guarantee
• Very stable output power
• Quick and simple installation due to prewiring
• High efficiency and reliability
• Installation in very cold and hot environments

Areas of application

• Suitable for indoor and outdoor installations
• Facade and building illumination
• Ideal for illuminating public spaces
• Bathrooms, kitchens and outdoor areas
• Offices, shopping centers, hospitals, restaurants, hotels

Product features

• Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W
• Dimmable via 1…10 V dimming control
• Dimmable from 10…100 %
• Lifetime: up to 50,000 h (at max. tc temperature)
• Type of protection: IP66
• Operating temperature range at ta: -40…50 °C
• Supply voltage: 220…240 V
• Operating frequency: 50/60 Hz
• Surge protection: up to 6 kV (L-N), 6 kV (L/N-PE)
• Short-circuit and overload protection
