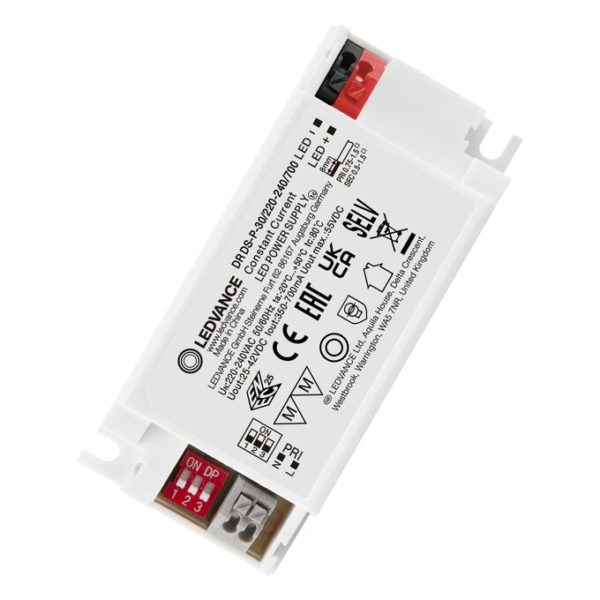

DR DS-P -30/220-240/700

Product benefits

• High flexibility due to adjustable output currents via dip switch
• Low flickering enables high light quality as well as good visual comfort
• Slim housing for narrow installations
• High efficiency and reliability

Areas of application

• Suitable for LED luminaires and LED modules
• Applicable for luminaires of protection classes I and II
• For indoor SELV installations
• Offices, shopping centers, hospitals, restaurants, hotels
• Suitable for a broad range of luminaires (by broad range of dip switch currents)

Product features

• Available in 20 W, 30 W, 40 W
• Independent installation with optional Cable Clamp Kit
• Lifetime: up to 50,000 h (at max. tc temperature)
• Type of protection: IP20
• Low ripple current < 5%
• Supply voltage: 220…240 V
• Operating frequency: 50/60 Hz
• Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
• Immunity according to EN 61547

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Disconnect mains before installation.
• Do not open enclosure-housing.

References / Links

• For Guarantee see
