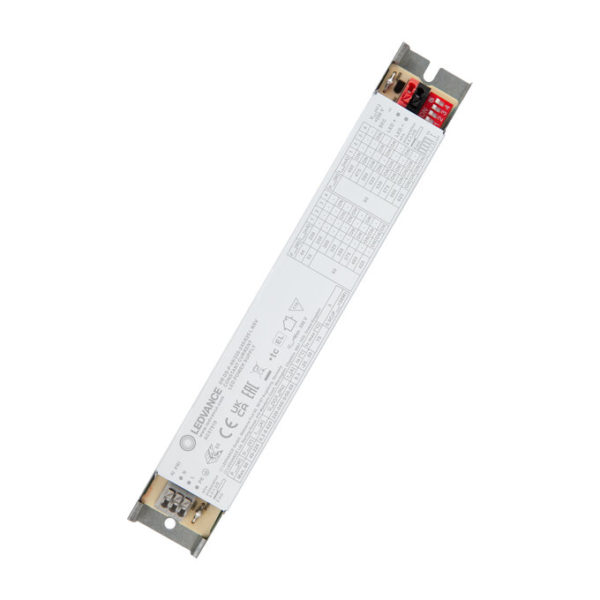

DR DS-P -60/220-240/625 L NSV

Product benefits

• High flexibility due to adjustable output currents via dip switch (16 currents)
• Low flickering enables high light quality as well as good visual comfort
• Flexible dip switch current settings on device in 25mA steps
• Geometry according to Zhaga specification
• High efficiency
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• 5 years guarantee

Areas of application

• Suitable for LED luminaires and LED modules
• Applicable for luminaires of protection class I
• Suitable for indoor non-SELV installations
• Suitable for emergency installations
• Linear lighting for office, education, industry, storage areas and retail

Product features

• Available in 40 W, 60 W, 90 W and 150 W
• Very long lifetime of up to 100,000 h
• Type of protection: IP20
• Low ripple current < 5%
• Supply voltage: 220…240 V
• Operating frequency: 0/50/60 Hz
• ENEC-certified safety
• Safety according to EN 61347-1, 61347-2-13, 62384
• Immunity according to EN 61547

References / Links
