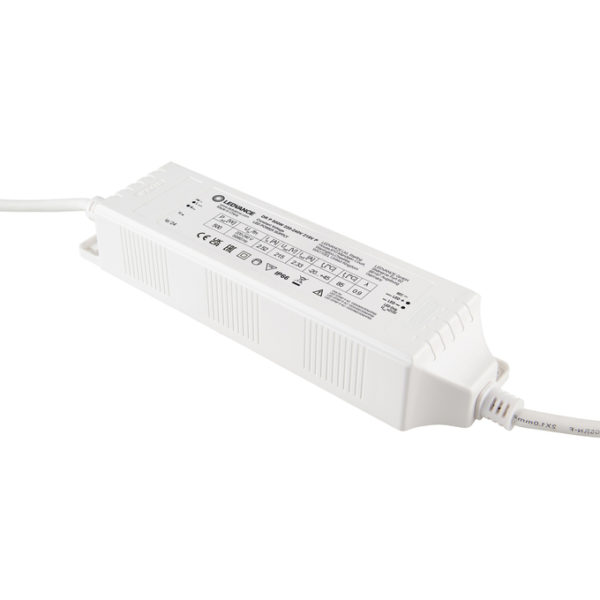

DR P 500W 220-240V 215V P

DR P 500W 220-240V 215V P

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075844728 Категория:
Product benefits
  • Simple and quick connection thanks to twist lock functionality
  • Increased LED strip luminous efficiency and luminous output in combination with LED driver
  • Low flicker light thanks to LED driver DR P 500W 220-240V 215V P
  • Perfectly matched to 230V AC LED flexible strips
  • Quick and simple installation
  • Good efficiency and reliability
Areas of application
  • General indoor illumination
  • General outdoor illumination
  • Industry and construction site
  • Offices, retail outlets and conference rooms
  • Architecture lighting
  • Decorative illumination
Product features
  • Available in 500 W
  • Prewired cables for mains supply connection and led strip
  • Supply voltage: 220…240 V
  • Operating frequency: 50/60 Hz
  • Overtemperature protection, output circuit short protection, output circuit over voltage protection
  • Lifetime: up to 50,000 h (at max. Ta temperature)
  • Type of protection: IP66
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Do not open enclosure-housing.
  • Disconnect mains before installation.
GTIN

4058075844728
Nominal wattage

500.00 W
Nominal voltage

220…240 V
Nominal current

2330 mA
Height

38.00 mm
Product weight

900.00 g
Product color

White
Body material

Plastic
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of protection

IP66
Dimmable

No
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Protection class

II
Mains frequency

50/60 Hz
Power factor λ

> 0.90
Length

510.00 mm
Width

60.00 mm
Product remark

Available from September 2024
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Type of current

AC/DC
Maximum temperature at tc test point

85 °C
Surge capability (L-N)

1 kV
ECG lifetime

50000 h
Nominal output current

2330.000 mA
Temperature range in operation

-20…+45 °C
Dimming interface

Not dimmable
Permitted rel. humidity during operation

0…93 %
Cable cross-section, input side

1.0 mm²
Overheating protection

Yes
Short-circuit protection

Yes
Nominal output power

500 W
Nominal output voltage

215 V
Input voltage AC

198…264 V
ECG efficiency

94 %
Casing material

Plastic
U-OUT (working voltage)

215 V
Output ripple current (100 Hz)

8 %
Max. ECG no. on circuit breaker 10 A (B)

3
Max. ECG no. on circuit breaker 25 A (B)

8
