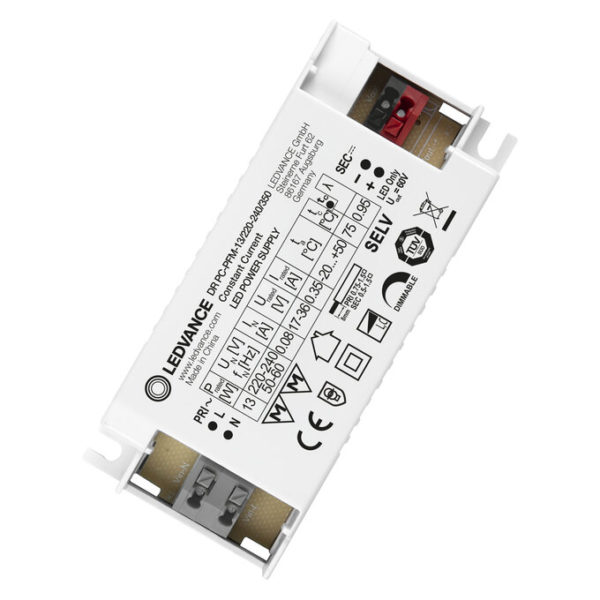

DR PC-PFM -13/220-240/350

Product benefits

• Enables installation with commonly used leading-edge and trailing-edge dimmers
• 5 years guarantee
• Slim housing for narrow installations
• High efficiency and reliability

Areas of application

• Suitable for LED luminaires and LED modules
• Applicable for luminaires of protection classes I and II
• For indoor SELV installations
• Offices, shopping centers, hospitals, restaurants, hotels

Product features

• Available in 13 W, 18 W, 25 W and 35 W
• Independent installation with optional Cable Clamp Kit
• Dimmable on the leading edge and trailing edge
• Dimmable from 10…100 %
• Lifetime: up to 50,000 h (at max. tc temperature)
• Type of protection: IP20
• Dedicated, constant output current
• Low ripple current < 5%
• Supply voltage: 220…240 V
• Operating frequency: 50/60 Hz
• Operated with less than 60 V: Safety extra-low voltage (SELV)
• Reversible overtemperature, overload, short-circuit and open-circuit protection

Equipment / Accessories

• Cable Clamp Kit to ensure propper strain relief

References / Links

• For Guarantee see
