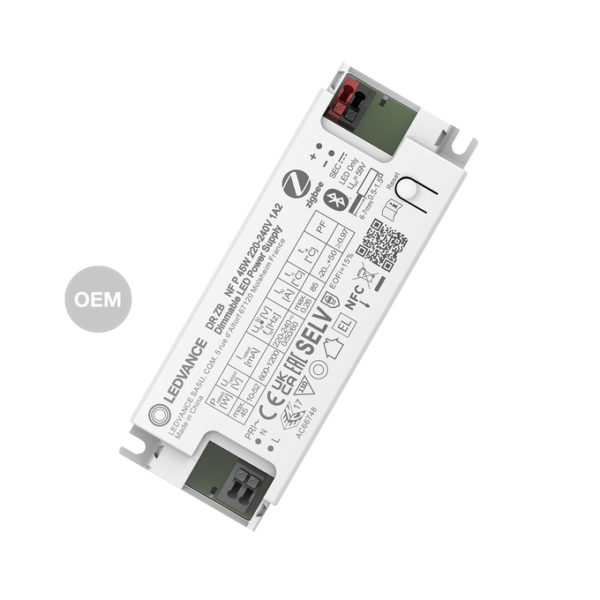

DR ZIGBEE NF P 45W 220-240V 1A2 OEM

Product benefits

• Zigbee 3.0 and Zigbee Direct via Bluetooth Low Energy (BLE)
• Flexible NFC current settings on device in 1 mA steps
• Consumption and diagnostic data via Zigbee
• Low flickering enables high light quality as well as good visual comfort
• High-quality dimming of 1…100 %
• Toolless installation

Areas of application

• Luminaires of protection class I and II
• Indoor SELV installations
• Suitable for LED T5 FC EXTERNAL P
• Emergency lighting systems (DC capable)
• Cove lighting
• Offices
• Education
• Storage areas
• Retail

Product features

• Available with an output current range: from 200…750 mA (30 W)
• Available with an output current range: from 600…1,200 mA (45 W)
• Type of installation: independent and built-in
• Suitable for emergency lighting fixtures acc. to EN 60598-2-2 with via NFC adjustable emergency output factor (EOFI)
• Quick and easy current setting via NFC
• Very long lifetime of up to 100,000 h
• Supply voltage: 220…240 V
• Operated with Safety extra-low voltage (SELV): < 60 V

Equipment / Accessories

• Cable clamps included for trade types

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Disconnect mains before installation.
• Do not open enclosure-housing.
