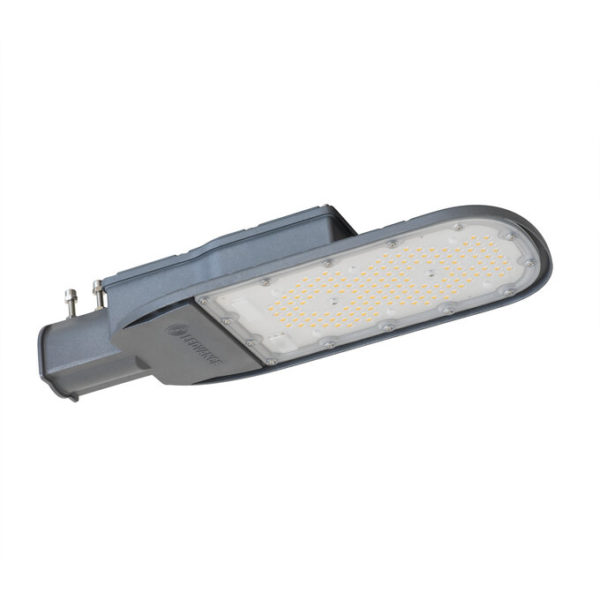

ECO AREA SPD 90W 827 IP66 GY

ECO AREA SPD 90W 827 IP66 GY

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075557710 Категория:
Product benefits
  • Functional and minimalistic design
  • Low maintenance and operation costs due to long lifetime of LED
  • 5 years guarantee
Areas of application
  • Road lighting
  • Streets
  • Car parks
  • Area lighting
Product features
  • Asymmetric light distribution for various application areas
  • Robust die-cast aluminum housing
  • Side-entry mounting for 48…60 mm poles
  • Surge protection: 10 kV (L/N-PE)
  • Integrated wide voltage driver, suitable for 100 — 240 VAC
  • Pre-installed, flexible 0.5 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
  • For Guarantee see
GTIN

4058075557710
Nominal wattage

90.00 W
Nominal voltage

100…240 V
Nominal current

450 mA
Luminous flux

11250 lm
Luminous efficacy

125 lm/W
Color temperature

2700 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

150 ° x 85 °
Height

91.00 mm
Product weight

3400.00 g
Product color

Gray
Housing color

Gray
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-35…+70 °C
Type of connection

Cable, 3-pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Side entry
Mounting location

Pole
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

1400 µs
Power factor λ

> 0.95
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

4
Max. number of luminaires per miniature circuit breaker C10

5
Max. number of luminaires per miniature circuit breaker C16

8
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

552.00 mm
Width

216.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

35000 h 1)
Cable length

500 mm
RAL Color (most similar)

RAL 7015
