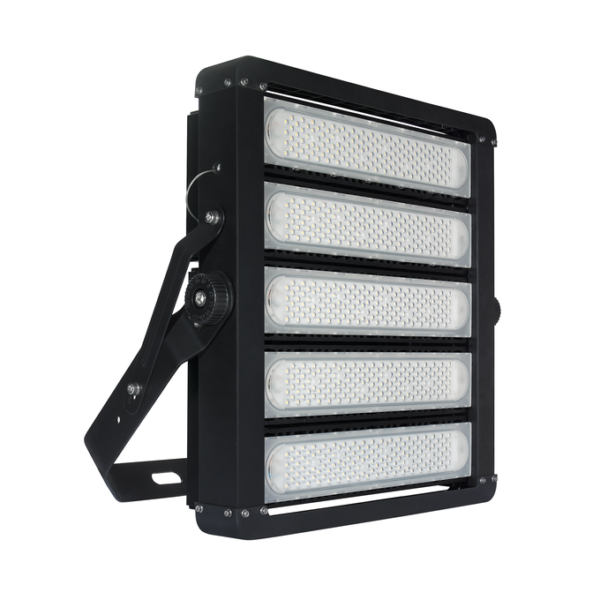

ECO HP FLOOD 500W 840 VN 61000LM BK

ECO HP FLOOD 500W 840 VN 61000LM BK

107 695,30 ₽

Артикул: 4058075372528 Категория:
Product benefits
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Homogeneous light output
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Sports facilities
  • Industry
  • Lighting of large areas
Product features
  • Rotational symmetric light distribution for high mast area lighting
  • Various versions with different types of light distribution available
  • Mounting bracket for up to 180° tilting
  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
  • For Guarantee see
GTIN

4058075372528
Nominal wattage

500.00 W
Nominal voltage

100…240 V
Nominal current

2550.000 mA
Luminous flux

61000 lm
Luminous efficacy

122 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG2
Beam angle

30 °
Height

152.00 mm
Product weight

17500.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-40…+45 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
With light source

No
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

150 A
Inrush current time Th50

500 µs
Power factor λ

> 0.95
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

1
Max. number of luminaires per miniature circuit breaker C10

1
Max. number of luminaires per miniature circuit breaker C16

1
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG2
Length

575.00 mm
Width

604.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Number of illuminants

—
Cable length

1000 mm
Adjustable

Yes
Light emitting surface material

Polycarbonate (PC)
RAL Color (most similar)

RAL 9005
