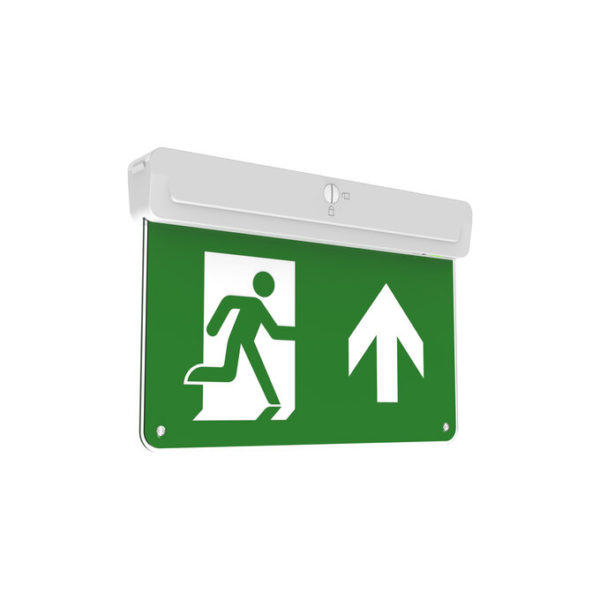

EM EXIT E 0.7W 30M 3H EM/AC AT

EM EXIT E 0.7W 30M 3H EM/AC AT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854230714 Категория:
Product benefits
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Easy maintenance with automatic test function or integrated test switch
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Offices, education, public buildings
Product features
  • Viewing distance: 30 m
  • Battery discharge time: 3 h
  • Battery technology: LiFePO4
  • Function test: manual (MA) or automatic (AT)
  • With integrated test switch for manual testing
  • Operation mode: maintained (M) or non-maintained (NM)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854230714
Nominal wattage

0.70 W
Nominal voltage

220…240 V
Nominal current

34.000 mA
Luminous flux

20 lm
Luminous efficacy

25 lm/W
Color temperature

5700 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 70
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0,4
Photobiological safety group acc. to EN62778

RG0
Height

42.00 mm
Product weight

510.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC), Polymethylmethacrylate (PMMA)
Ambient temperature range

0…+45 °C
Temperature range at storage

0…+35 °C
Type of connection

Terminal
Type of protection

IP20
Dimmable

No
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)/Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

6.5 A
Inrush current time Th50

2.8 µs
Power factor λ

0.25
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

115
Max. number of luminaires per miniature circuit breaker C10

92
Max. number of luminaires per miniature circuit breaker C16

147
Length

313.00 mm
Width

212.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

1100 mAh
Battery charging time

24 h
Adjustable

No
Luminous flux in emergency operation mode

20 lm
Battery life in emergency operation mode

3 h
Mounting depth

0 mm
Output current

260 mA
Type of emergency light operation

Maintain
Integrated test switch

Yes
Low flicker

Yes
Wattage in emergency operation mode

0.7 W
ECG - Output ripple current

8 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Emergency exit signage
