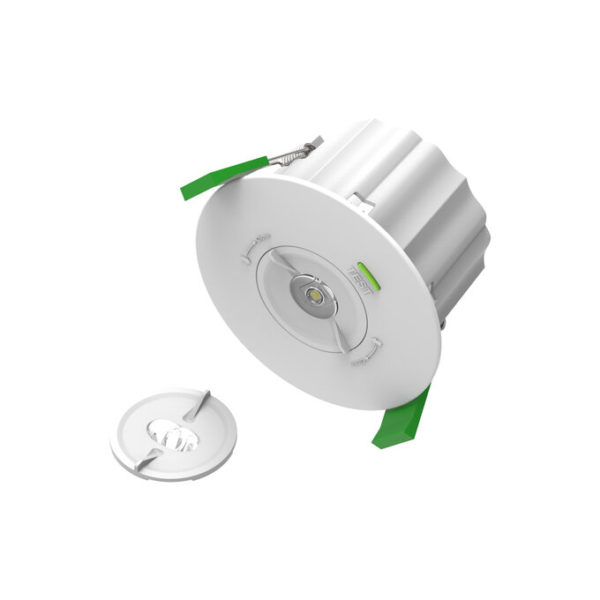

EM SPOT E 1.3W 3H AT

EM SPOT E 1.3W 3H AT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854230653 Категория:
Product benefits
  • Flexible changeable lenses for different applications included in packaging
  • Less luminaires per installation due to optimized light distribution
  • Easy maintenance with automatic test function or integrated test switch
Areas of application
  • Antipanic lighting
  • Foyers
  • Offices
  • Corridors, entrances, foyers, stairwells, elevators
Product features
  • Battery discharge time: 3 h
  • Battery technology: LiFePO4
  • Function test: manual (MA) or automatic (AT)
  • With integrated test switch for manual testing
  • Operation mode: non-maintained (NM)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854230653
Nominal wattage

1.30 W
Nominal voltage

220…240 V
Nominal current

20.000 mA
Luminous flux

200 lm
Luminous efficacy

150 lm/W
Color temperature

5700 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 70
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0,4
Photobiological safety group acc. to EN62778

RG1
Beam angle

150° + 155×90 °
Height

66.00 mm
Product weight

250.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

0…+45 °C
Temperature range at storage

0…+35 °C
Type of connection

Terminal
Type of protection

IP20
Dimmable

No
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

104.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

6.72 A
Inrush current time Th50

47.6 µs
Power factor λ

0.2
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

111
Max. number of luminaires per miniature circuit breaker C10

89
Max. number of luminaires per miniature circuit breaker C16

142
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

1800 mAh
Battery charging time

24 h
Adjustable

No
Luminous flux in emergency operation mode

200 lm
Battery life in emergency operation mode

3 h
Mounting diameter

95 mm
Mounting depth

66.00 mm
Output current

230 mA
Type of emergency light operation

Non-maintained
Integrated test switch

Yes
Low flicker

Yes
Wattage in emergency operation mode

1.3 W
ECG - Output ripple current

28 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighting
1.3 W

150 lm/W + 120lm/W
