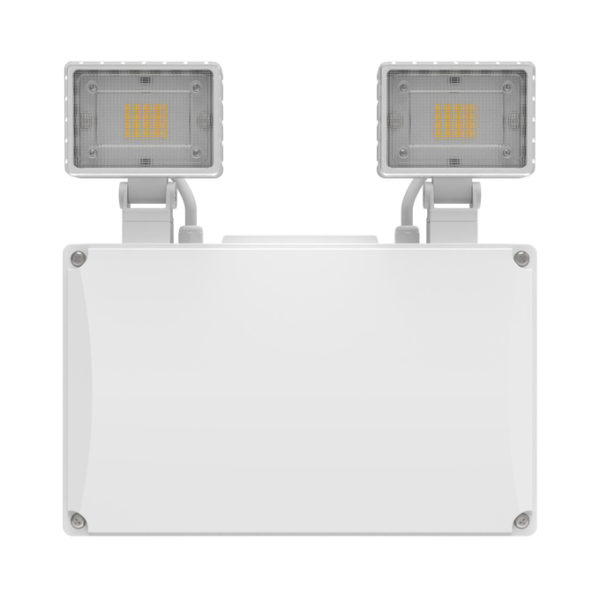

EM TWIN SPOT V 3W 3H AT IP65 WT

EM TWIN SPOT V 3W 3H AT IP65 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854668203 Категория:
Product benefits
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Emergency lighting according to IEC 60598-2-22 with emergency lighting driver and battery
  • Fully adjustable twin spot lights ensure optimal illumination
Areas of application
  • Antipanic lighting
  • Car parks and industrial sites
  • Offices, education, public buildings
Product features
  • Type of protection: IP65
  • Battery discharge time: 3 h
  • Battery technology: LiFePO4
  • Function test of emergency lighting: automatic (AT)
  • With integrated test switch for manual testing
  • Operation mode: non-maintained (NM)
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854668203
Nominal wattage

3.00 W
Nominal voltage

220…240 V
Nominal current

45 mA
Luminous flux

450 lm
Luminous efficacy

150 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

≤ 1
Stroboscope effect metric (SVM)

≤ 0,4
Beam angle

100 °
Height

274.00 mm
Product weight

1015.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

0…+45 °C
Temperature range at storage

0…+45 °C
Type of connection

Terminal
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Recessed
Mounting location

Wall
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

6.8 A
Inrush current time Th50

48 µs
Power factor λ

0.3
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

110
Max. number of luminaires per miniature circuit breaker C10

90
Max. number of luminaires per miniature circuit breaker C16

150
Protection class IK (shock resistance)

IK03
Length

275.00 mm
Width

55.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

9.6 V
Nominal capacity of battery

1500 mAh
Luminous intensity

no relevant
Lifespan L80/B10 at 25 °C

80000 h 1)
Battery charging time

24 h
Adjustable

No
Luminous flux in emergency operation mode

450 lm
Battery life in emergency operation mode

3 h
Mounting depth

55.5 mm
Output current

247…331 mA
Type of emergency light operation

Non-maintained
Integrated test switch

Yes
Surge capability (L-N)

1 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

3 W
ECG - Output ripple current

8 %
Area of emergency application

Anti-panic lighting
